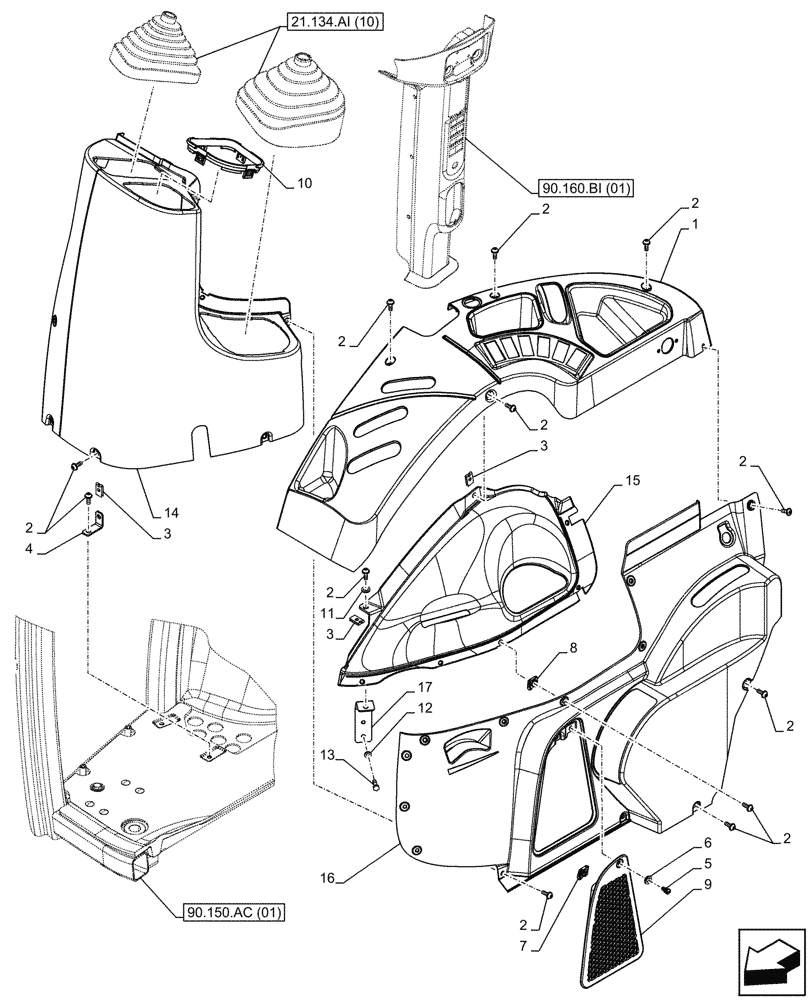

Запчасти Case IH FARMALL 75C (90.160.BL[02]) - VAR - 336125, 338125, 336780 - CAB INTERIOR TRIM, RIGHT SIDE, W/ MID MOUNT VALVES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84315035

TRIM PANEL

RH, Upper

1шт.

2

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

28шт.

3

14371774

SPRING NUT,M6, U, 12mm long

8шт.

4

84292077

BRACKET

3шт.

5

84354393

PIN,18.8mm L

10.1mm Head, 18.8mm H

1шт.

6

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

10.16mm OD

1шт.

7

84291986

CLIP,18.8mm L x 15.9mm W

Squared, 15.9mm

1шт.

8

14369271

SPRING NUT,U, M6 x 16.20mm x 0.50mm Thk, ZND

5шт.

9

84315050

FILTER COVER

RH

1шт.

10

84370125

INSERT

1шт.

11

895-30102

WASHER,6.6mm ID x 21mm OD x 1.6mm Thk

1шт.

12

86639317

WASHER,6.4mm ID x 13mm OD x 2mm Thk

2шт.

13

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

14

84315023

TRIM

RH, Pillar

1шт.

15

84315066

TRIM PANEL

RH, Central

1шт.

Without Lift-O-Matic, Var. 336125, 338125, 336780

1шт.

15

84421222

TRIM PANEL

RH, Central

1шт.

With Lift-O-Matic Plus, Var. 330342, 330344

1шт.

16

84315025

TRIM PANEL

RH, Lower

1шт.

17

84311409

BRACKET

1шт.
