(90.160.BL[01]) - VAR - 390124 - CAB INTERIOR TRIM, RIGHT SIDE, W/O MID MOUNT VALVES

Запчасти Case IH FARMALL 75C (90.160.BL[01]) - VAR - 390124 - CAB INTERIOR TRIM, RIGHT SIDE, W/O MID MOUNT VALVES (90) - PLATFORM, CAB, BODYWORK AND DECALS

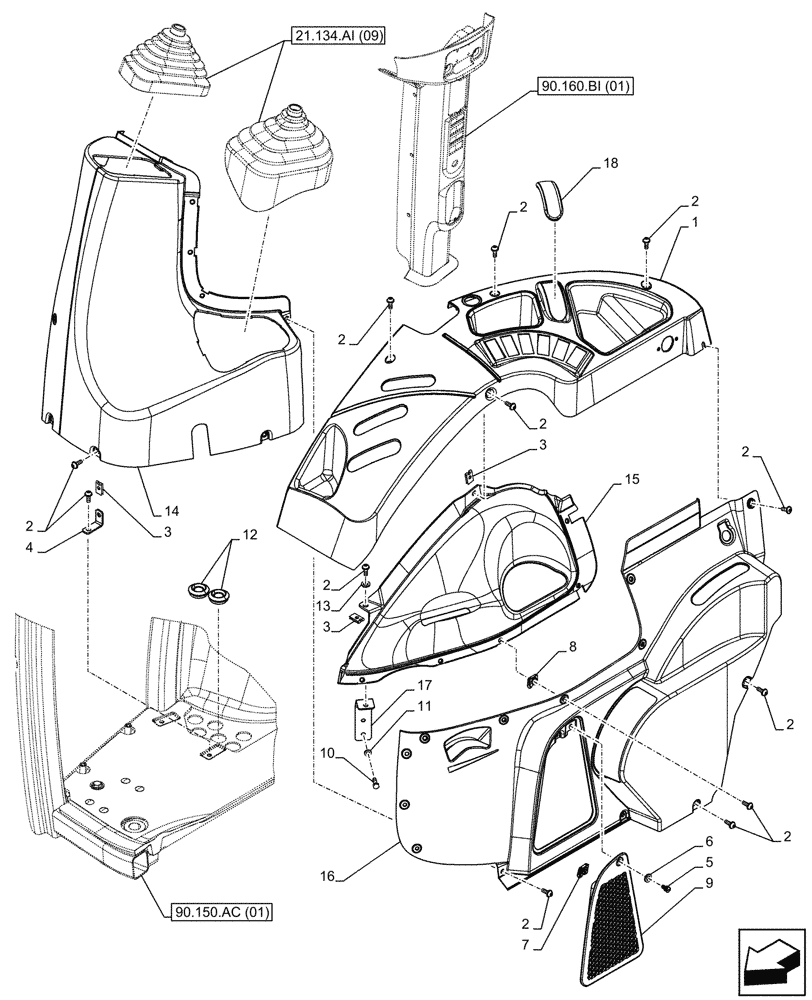

Схема запчастей Case IH FARMALL 75C - (90.160.BL[01]) - VAR - 390124 - CAB INTERIOR TRIM, RIGHT SIDE, W/O MID MOUNT VALVES (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.150.ac (01)
1
2
16
2
18
7
4
15
13
10
6
14
2
2
12
2
5
2
3
2
3
11
3
9
2
17
2
2
8
90.160.bi (01)
21.134.ai (09)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84315035

TRIM PANEL

RH, Upper

1шт.

2

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

28шт.

3

14371774

SPRING NUT,M6, U, 12mm long

8шт.

4

84292077

BRACKET

3шт.

5

84354393

PIN,18.8mm L

10.1mm Head, 18.8mm H

1шт.

6

84354903

THRUST WASHER,10.2mm OD x 1mm Thk

10.16mm OD

1шт.

7

84291986

CLIP,18.8mm L x 15.9mm W

Squared, 15.9mm

1шт.

8

14369271

SPRING NUT,U, M6 x 16.20mm x 0.50mm Thk, ZND

5шт.

9

84315050

FILTER COVER

RH

1шт.

10

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

11

86639317

WASHER,6.4mm ID x 13mm OD x 2mm Thk

2шт.

12

81862738

PLUG,M38 x 28 x 5mm

2шт.

13

895-30102

WASHER,6.6mm ID x 21mm OD x 1.6mm Thk

1шт.

14

84347041

TRIM

RH, Pillar

1шт.

15

84315066

TRIM PANEL

RH, Central

1шт.

16

84315025

TRIM PANEL

RH, Lower

1шт.

17

84311409

BRACKET

1шт.

18

84354389

PLUG

1шт.
