(90.160.BI[03]) - VAR - 333606, 391606, 743496 - CAB INTERIOR TRIM, PILLAR, RH, COVER

Запчасти Case IH FARMALL 75C (90.160.BI[03]) - VAR - 333606, 391606, 743496 - CAB INTERIOR TRIM, PILLAR, RH, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

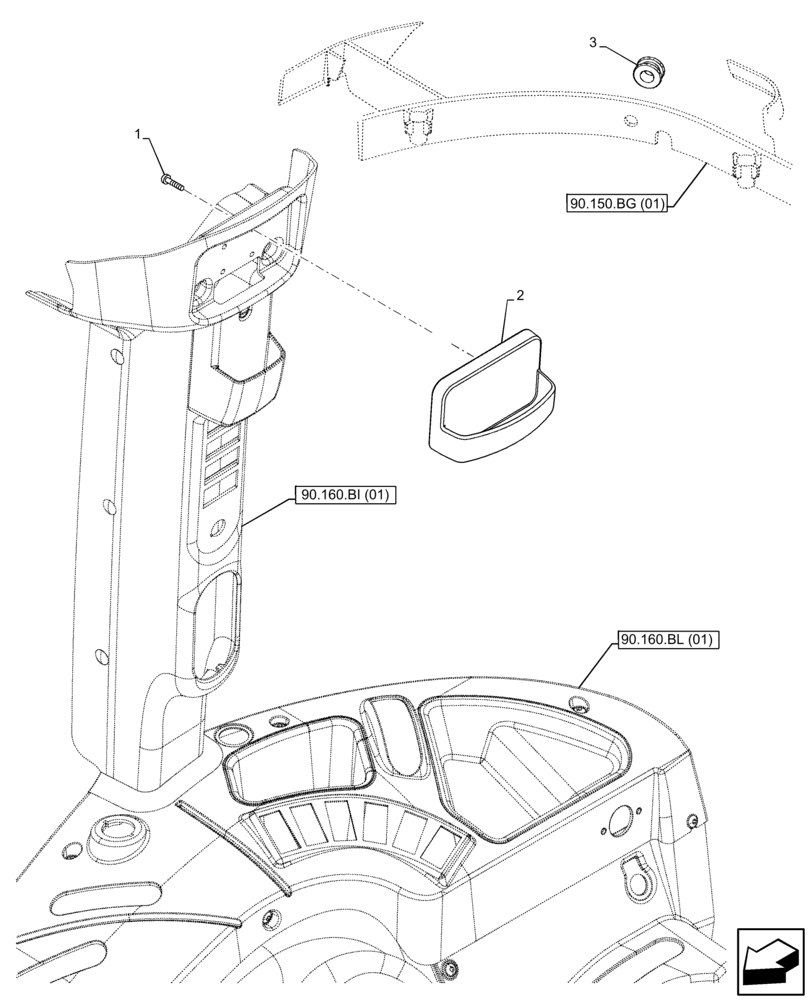

Схема запчастей Case IH FARMALL 75C - (90.160.BI[03]) - VAR - 333606, 391606, 743496 - CAB INTERIOR TRIM, PILLAR, RH, COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.160.bl (01)
1
3
90.160.bi (01)
2
90.150.bg (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

4шт.

2

84347910

COVER ASSY

1шт.

3

47450993

PLASTIC PLUG

W/O Radio, 16mm

1шт.

Выбрано товаров: 3
