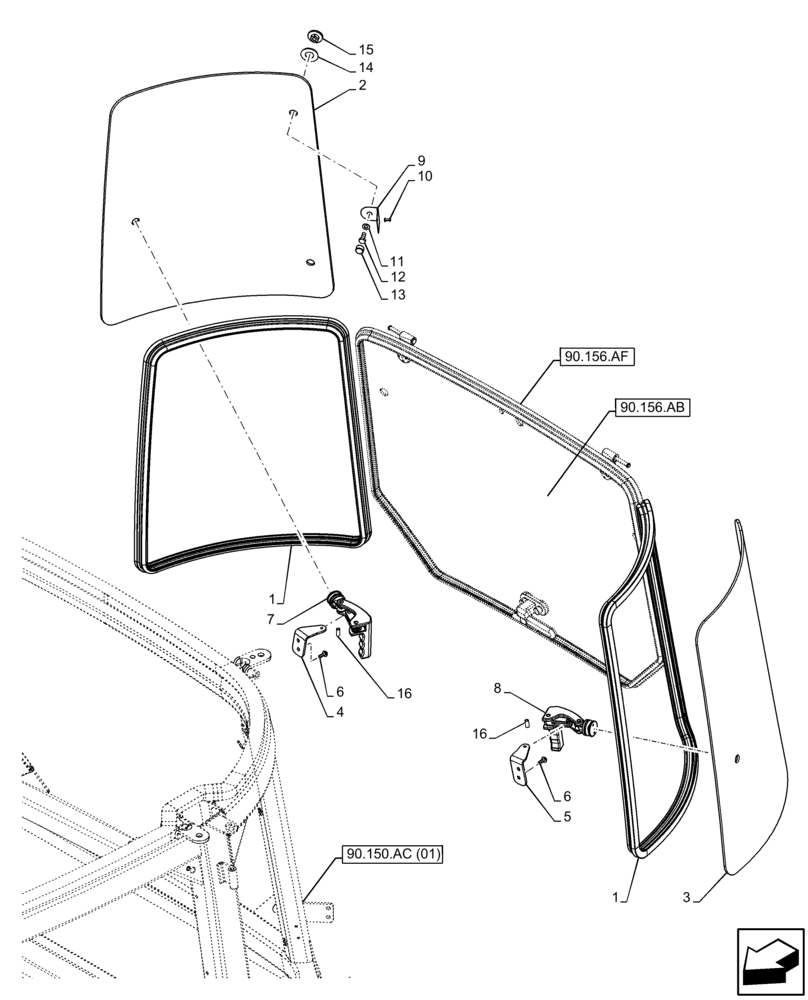

Запчасти Case IH FARMALL 75C (90.156.AI[02]) - VAR - 334183, 334211, 743573, 744588 - GLASS, REAR, RIGHT SIDE, LEFT SIDE, OPENABLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84224277

SEAL, GLASS,2250mm L

Rear, Lateral

2шт.

2

84224146

GLASS

Rear, Lateral, RH

1шт.

3

84224147

GLASS

Rear, Lateral, LH

1шт.

4

84369167

BRACKET

RH

1шт.

5

84369170

BRACKET

LH

1шт.

6

84554745

SCREW,M6 x 1 x 22mm, Cl 5.8

M6 x 22 Cl 5.8 BZN

4шт.

7

84540520

HANDLE

RH

1шт.

8

84540524

HANDLE

LH

1шт.

9

84368803

BRACKET

4шт.

10

14642791

RIVET,Tr Hd, M4.8 x 12, Aluminum

8шт.

11

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

6шт.

12

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

6шт.

13

5089481

CAP,17mm OD

6шт.

14

5094140

WASHER,19mm ID x 39mm OD x 4mm Thk

39mm OD x 19mm ID x 4mm H

6шт.

15

5094141

NUT,Spheric, M8

M8

6шт.

16

14600670

LOCK PIN,M5 x 16, Slotted

2шт.
