Запчасти Case IH FARMALL 75C (90.156.AE) - VAR - 334183, 334211, 391606, 743496, 743573, 744588 - WINDOW, REAR, GAS STRUT (90) - PLATFORM, CAB, BODYWORK AND DECALS

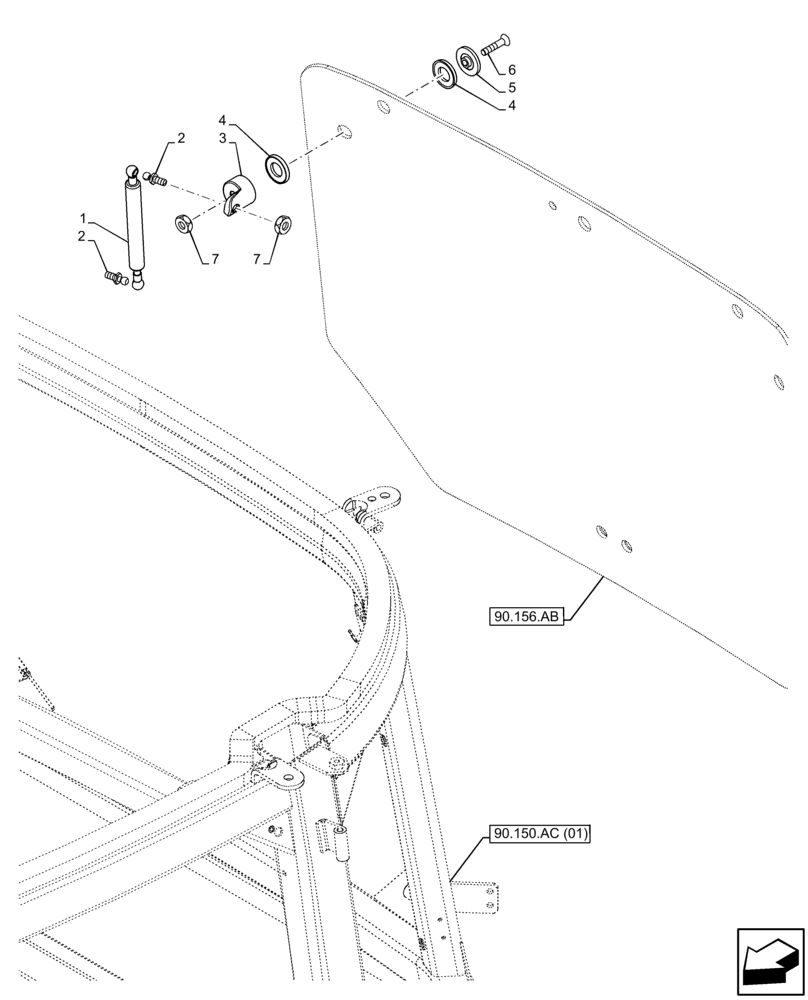

Схема запчастей Case IH FARMALL 75C - (90.156.AE) - VAR - 334183, 334211, 391606, 743496, 743573, 744588 - WINDOW, REAR, GAS STRUT (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
90.150.ac (01)
2
90.156.ab
2
7
4
7
5
1
3
6

Артикул

Название

Примечание

Количество

1

84280589

GAS STRUT

2шт.

2

44910148

BALL STUD,M8 x 1.25

M8 x 1.25

4шт.

3

44910149

ARTICULATION

2шт.

4

44910151

GASKET,15mm ID x 39mm OD x 4.5mm Thk

41mm OD x 15mm ID

4шт.

5

44910150

SEALING WASHER,8.5mm ID x 39mm OD x 13mm Thk

39mm OD x 8.5mm ID

2шт.

6

13304117

SCREW,Pozidriv Flat Hd, Csk, M8 x 40mm, Cl 5.8

M8 x 40 Cl 5.8 BZN

2шт.

7

16104414

LOCK NUT,M8 x 1.25

4шт.

Выбрано товаров: 7
