(90.151.AD[08]) - VAR - 330706 - SEAT BELT

Запчасти Case IH FARMALL 75C (90.151.AD[08]) - VAR - 330706 - SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

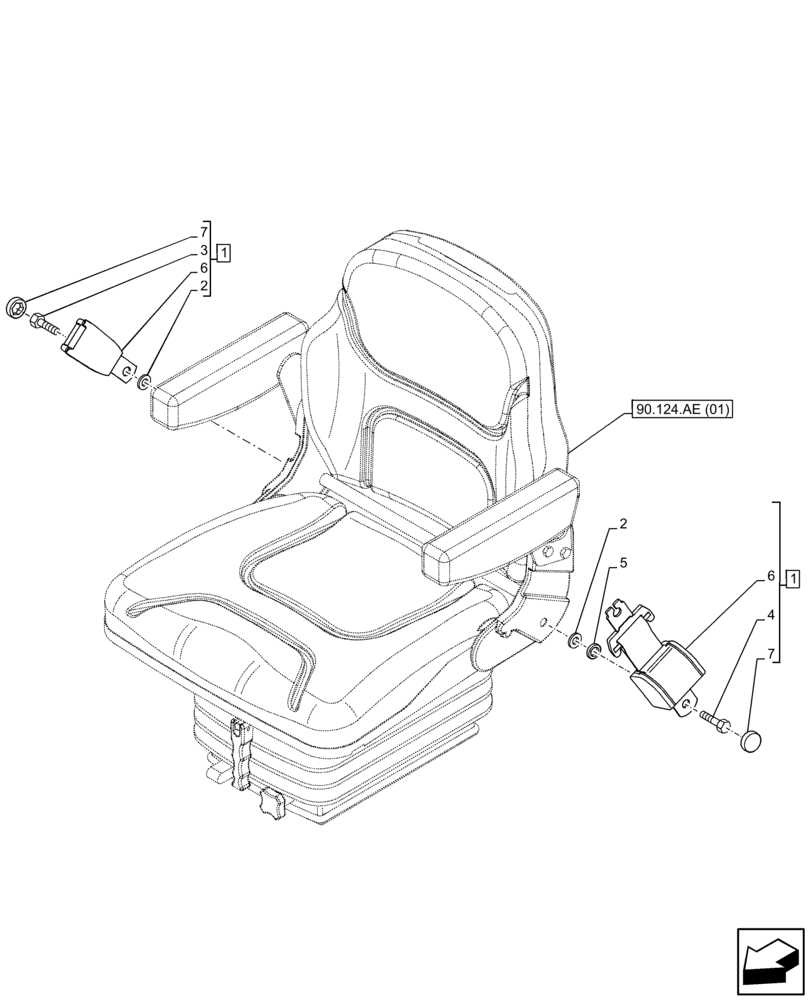

Схема запчастей Case IH FARMALL 75C - (90.151.AD[08]) - VAR - 330706 - SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
2
4
7
90.124.ae (01)
6
6
1
3
7
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84361200

SEAT BELT,51mm W x 1470mm L

ASSY, Incl 2 - 7

1шт.

2

84355679

LOCK WASHER,20.5mm OD x 13mm ID

20.5mm OD x 13mm ID

2шт.

3

5080270

SCREW,7/16 UNF x 25mm

7/16 UNF x 25mm

1шт.

4

84361158

SCREW,7/16 UNF x 30mm

7/16 UNF x 30mm

1шт.

5

84361166

BUSHING,20mm OD x 12mm ID x 7.5mm L

20mm OD x 12mm ID x 7.5mm H

1шт.

6

84359362

SAFETY BELT

1шт.

7

5080271

COVER,17.5mm ID

7/16 UNF

2шт.
