(90.151.AD[02]) - VAR - 331962, 743578 - DRIVER SEAT (W/ ARMREST), BELT, CAB

Запчасти Case IH FARMALL 75C (90.151.AD[02]) - VAR - 331962, 743578 - DRIVER SEAT (W/ ARMREST), BELT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

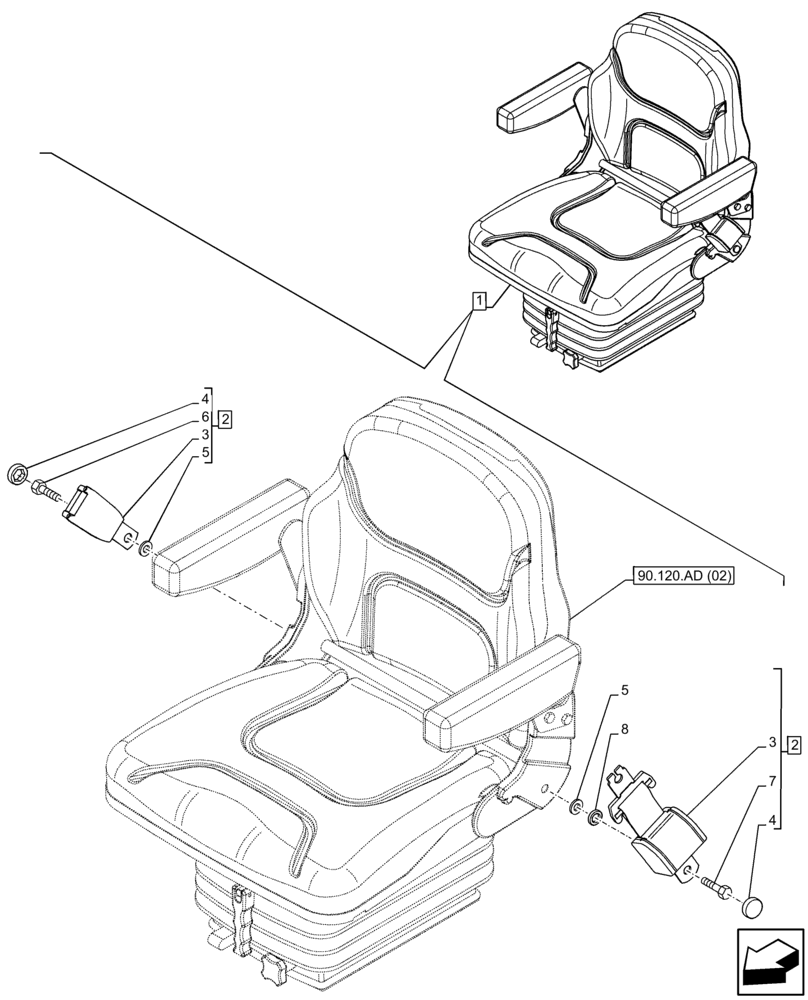

Схема запчастей Case IH FARMALL 75C - (90.151.AD[02]) - VAR - 331962, 743578 - DRIVER SEAT (W/ ARMREST), BELT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
4
3
90.120.ad (02)
3
5
7
4
2
8
6
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84347511

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2 - 8

1шт.

Mechanical Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Figure 90.120.AA (02), 90.120.AD (02), 90.120.AE (02), 90.120.BA (02),90.120.BB (03), (04), 90.120.BH (02)

1шт.

2

84361200

SEAT BELT,51mm W x 1470mm L

ASSY, Incl 3 - 8

1шт.

3

84359362

SAFETY BELT

1шт.

4

5080271

COVER,17.5mm ID

17.5mm ID

2шт.

5

84355679

LOCK WASHER,20.5mm OD x 13mm ID

20.5mm OD x 13mm ID

2шт.

6

5080270

SCREW,7/16 UNF x 25mm

7/16 UNF x 25mm

1шт.

7

84361158

SCREW,7/16 UNF x 30mm

7/16 UNF x 30mm

1шт.

8

84361166

BUSHING,20mm OD x 12mm ID x 7.5mm L

20mm OD x 12mm ID x 7.5mm H

1шт.
