(90.151.AD[01]) - VAR - 391684 - DRIVER SEAT, BELT, CAB

Запчасти Case IH FARMALL 75C (90.151.AD[01]) - VAR - 391684 - DRIVER SEAT, BELT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

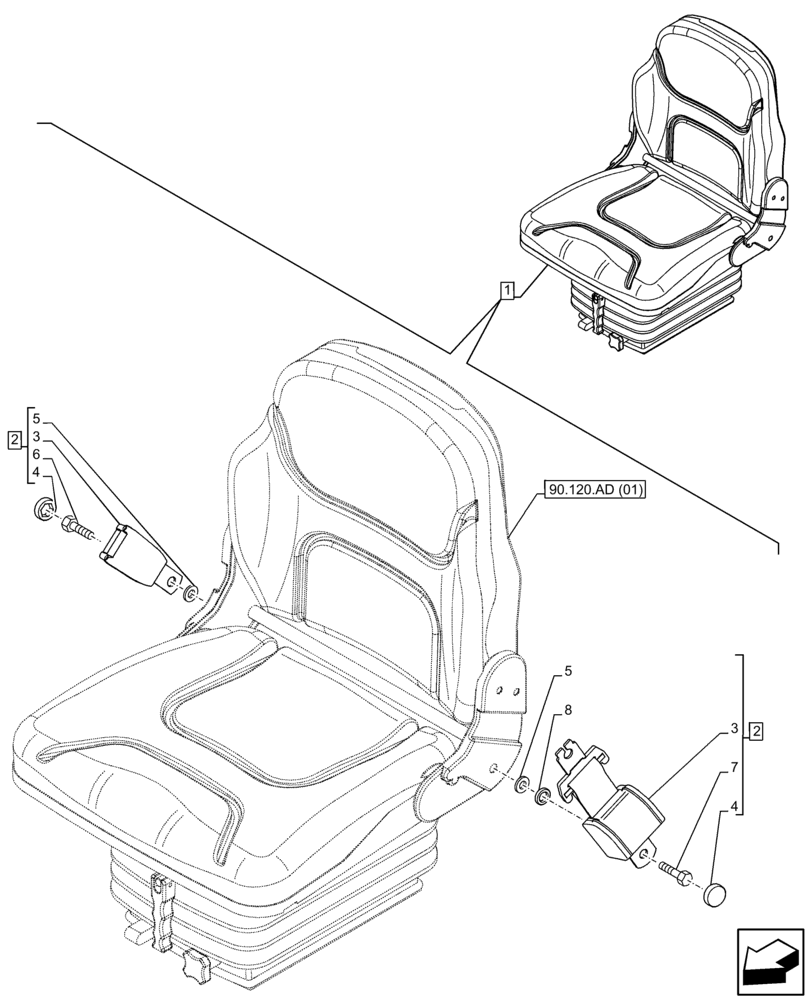

Схема запчастей Case IH FARMALL 75C - (90.151.AD[01]) - VAR - 391684 - DRIVER SEAT, BELT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
3
7
5
5
2
4
2
8
6
1
90.120.ad (01)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84347510

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2 - 8

1шт.

Mechanical Suspension, W/ Safety Switch

1шт.

See Driver Seat Components also in Figure 90.120.AA (01), 90.120.AE (01), 90.120.BA (01),90.120.BB (01), (02), 90.120.BH (01)

1шт.

2

84361200

SEAT BELT,51mm W x 1470mm L

ASSY, Incl 3 - 8

1шт.

3

84359362

SAFETY BELT

1шт.

4

5080271

COVER,17.5mm ID

17.5mm ID

2шт.

5

84355679

LOCK WASHER,20.5mm OD x 13mm ID

20.5mm OD x 13mm ID

2шт.

6

5080270

SCREW,7/16 UNF x 25mm

7/16 UNF x 25mm

1шт.

7

84361158

SCREW,7/16 UNF x 30mm

7/16 UNF x 30mm

1шт.

8

84361166

BUSHING,20mm OD x 12mm ID x 7.5mm L

20mm OD x 12mm ID x 7.5mm H

1шт.
