(90.151.AC[02]) - VAR - 334183, 744588 - PASSENGER SEAT, COMPONENTS, W/ CAB

Запчасти Case IH FARMALL 75C (90.151.AC[02]) - VAR - 334183, 744588 - PASSENGER SEAT, COMPONENTS, W/ CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

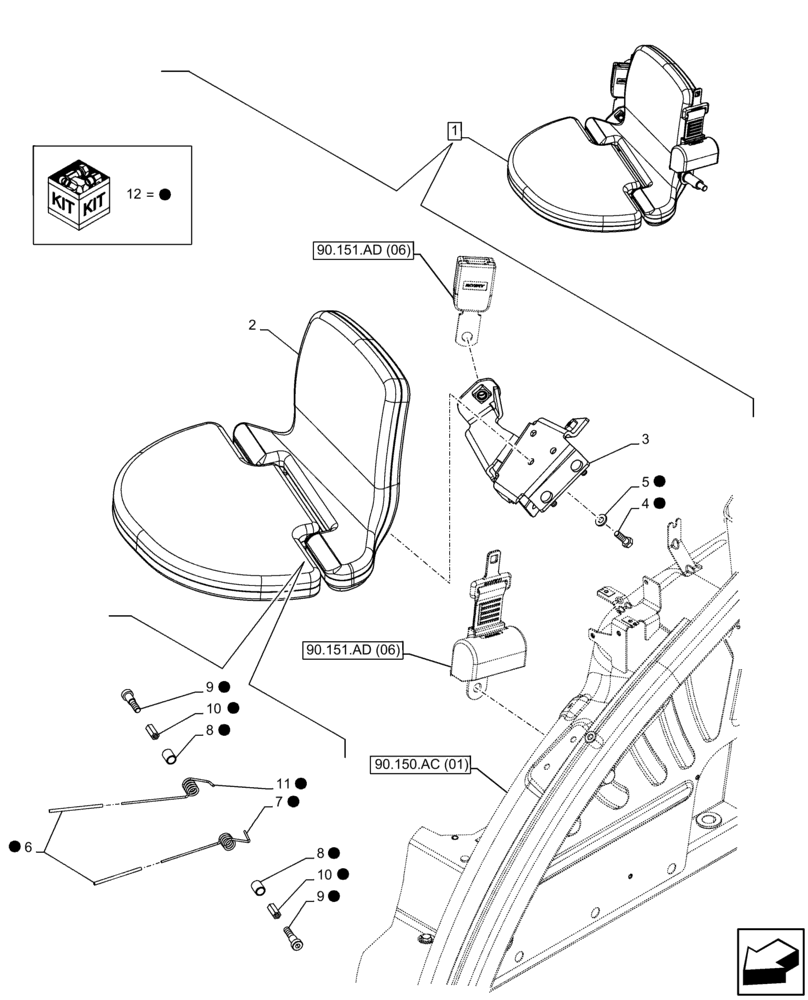

Схема запчастей Case IH FARMALL 75C - (90.151.AC[02]) - VAR - 334183, 744588 - PASSENGER SEAT, COMPONENTS, W/ CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
12
12
8
11
12
12
1
9
2
4
3
10
10
90.151.ad (06)
90.150.ac (01)
12
12
12
5
12
9
7
12
90.151.ad (06)
6
8
12
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84281902

INSTRUCTIONAL SEAT

ASSY, Fabric, Wheat, Incl 2 - 12, Start Serial: C9059

1шт.

1

47564639

INSTRUCTIONAL SEAT

ASSY, Fabric, Wheat, Incl 2 - 12, Serial Range: -D9059

1шт.

2

NSS

NOT SOLD SEPARAT

Cushion, Incl in 1

1шт.

3

84295299

BRACKET

1шт.

4

84467669

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

M8 x 1.25 x 25mm

3шт.

5

84467674

WASHER,8.4mm ID x 17.5mm OD x 2.5mm Thk

8.4mm x 17.5mm x 2mm

3шт.

6

84412870

SLEEVE

2шт.

7

84412864

SPRING

LH

1шт.

8

84412873

BUSHING

2шт.

9

84412857

HEX SOC SCREW,Hex, M8 x 1.25 x 37mm

M8 x 1.25 x 37mm

2шт.

10

84412869

PROFILE,M8 x 1.25

M8 x 1.25

2шт.

11

84412859

SPRING

RH

1шт.

12

84470865

KIT

Instructional Seat, Incl 4 - 11

1шт.
