Запчасти Case IH FARMALL 75C (90.150.BG[03]) - VAR - 333606, 334183, 334211, 335629, 743496 - CAB ROOF, PANEL, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

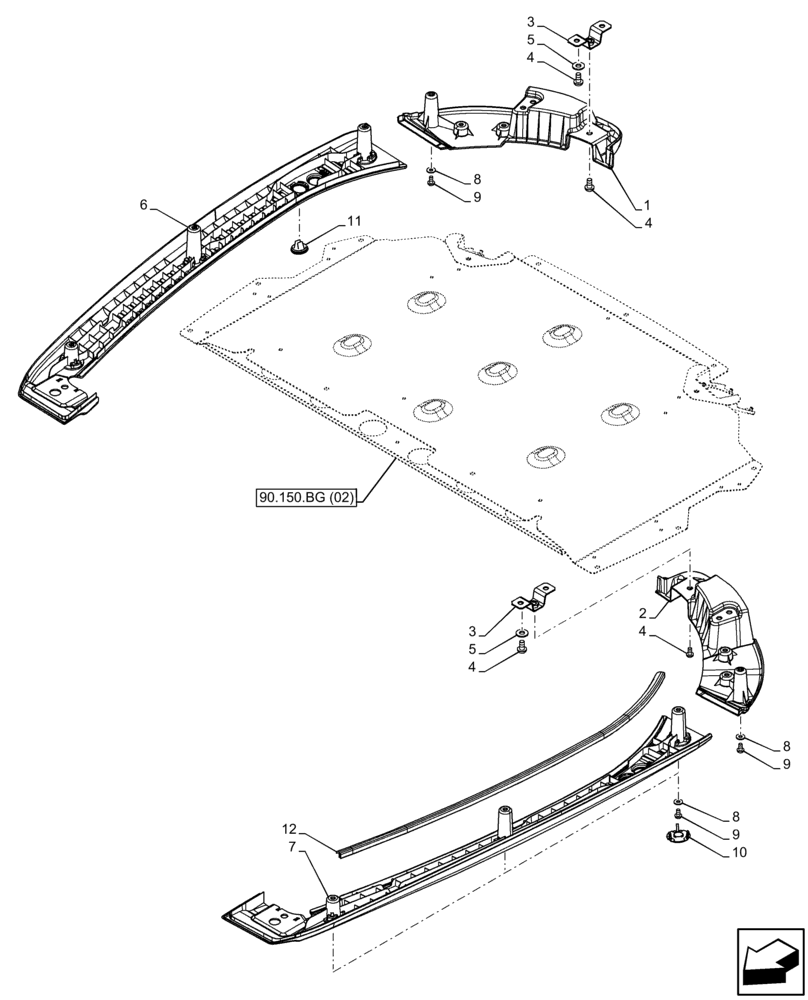

![Схема запчастей Case IH FARMALL 75C - (90.150.BG[03]) - VAR - 333606, 334183, 334211, 335629, 743496 - CAB ROOF, PANEL, W/ HIGH VISIBILITY PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/caseih/5182262.png)
4
3
1
12
8
5
8
6
9
3
8
7
10
4
5
90.150.bg (02)
9
9
4
4
11
2
1
84317188
PANEL
RH, Rear
1шт.
2
84317189
PANEL
LH, Rear
1шт.
3
84317193
BRACKET
2шт.
4
84187810
SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8
6шт.
5
10519604
WASHER,8.15mm ID x 17mm OD x 2mm Thk
4шт.
6
47410967
PANEL
RH
1шт.
7
47410992
PANEL
LH
1шт.
8
12646601
WASHER,6.15mm ID x 15mm OD x 1.5mm Thk
8шт.
9
84187816
SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL
8шт.
10
84317182
PLUG,44mm OD, Black
Black, D=44mm
6шт.
11
84317184
PLUG,35mm OD, Black
Black, D=35mm
4шт.
12
84275319
RUBBER SEAL,897mm L
897mm
2шт.
