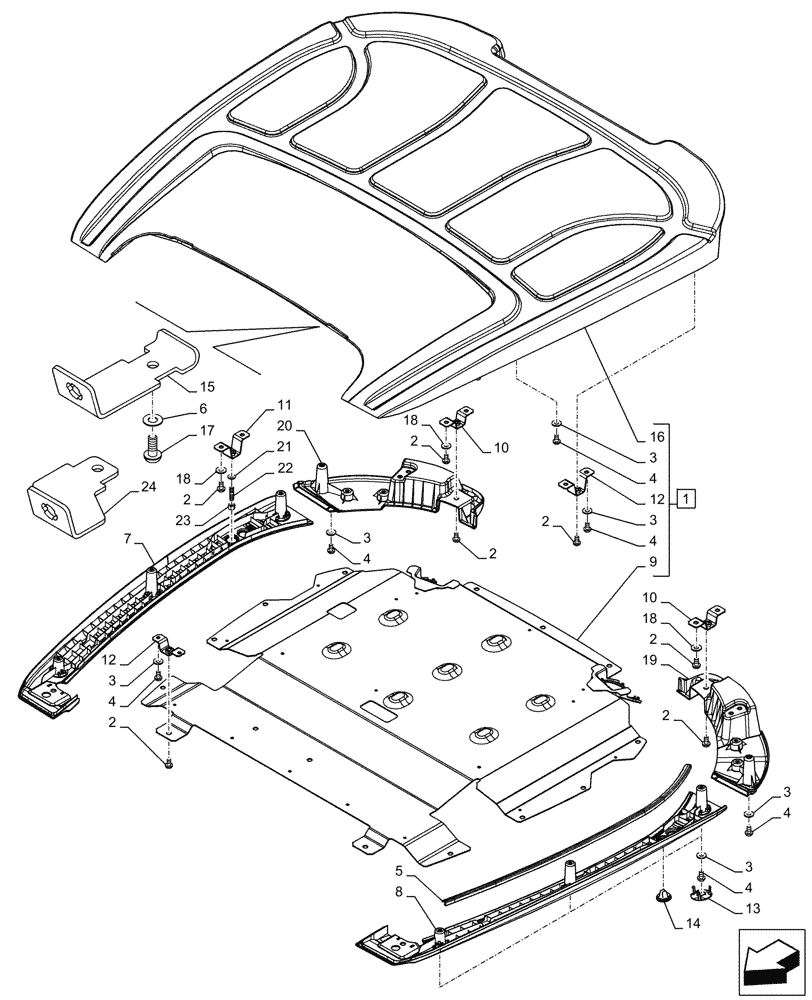

Запчасти Case IH FARMALL 75C (90.150.BG[01]) - VAR - 332606, 335632, 391606, 743573, 744588 - CAB ROOF (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47411573

ROOF

ASSY, Red, Incl 3 (Qty 18), 4 (Qty 18), 9, 12, 16

1шт.

2

84187810

SCREW,Torx Pan Hd, M8 x 16mm, Cl 8.8

12шт.

3

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

30шт.

4

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

30шт.

5

84275319

RUBBER SEAL,897mm L

897mm

2шт.

6

11181474

BELLEVILLE WASHER,M4 Bolt Size x 9mm OD x 0.7mm Thk

1шт.

7

47410967

PANEL

RH

1шт.

8

47410992

PANEL

LH

1шт.

9

84310702

STEEL PLATE

1шт.

10

84317193

BRACKET

2шт.

11

84317195

BRACKET

2шт.

12

84310794

BRACKET

2шт.

13

84317182

PLUG,44mm OD, Black

Black, D=44mm

6шт.

14

84317184

PLUG,35mm OD, Black

Black, D=35mm

4шт.

15

47398004

BRACKET

, Years: -30-SEP-14

1шт.

16

NSS

NOT SOLD SEPARAT

Roof, Incl in 1

1шт.

17

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

1шт.

18

10519604

WASHER,8.15mm ID x 17mm OD x 2mm Thk

8шт.

19

84317189

PANEL

LH. Rear

1шт.

20

84317188

PANEL

RH. Rear

1шт.

21

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

22

13516924

STUD,M8 x 34mm L, Cl. 8.8

M8 x 12 x 22 Cl 8.8 DAC

4шт.

23

16104114

LOCK NUT,M8, Cl 8

M8 Cl 8 DAC

4шт.

24

47613002

BRACKET

, Start Year: 01-OCT-14

1шт.
