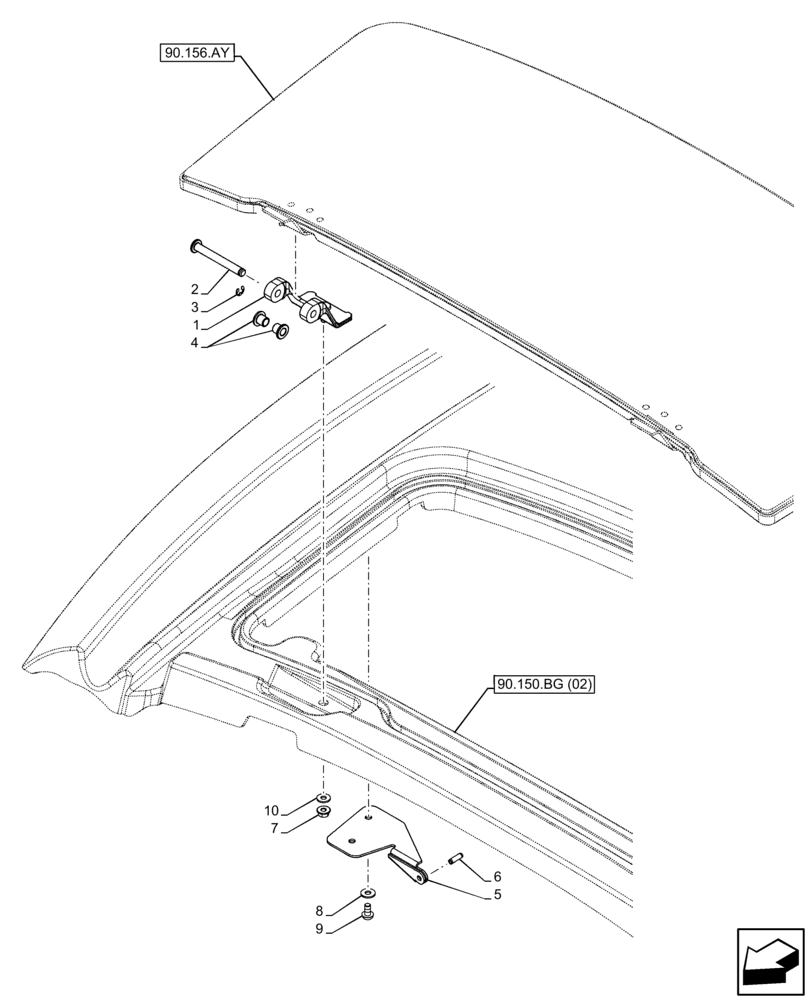

Запчасти Case IH FARMALL 75C (90.150.BC[01]) - VAR - 333606, 334183, 334211, 335629, 743496 - CAB ROOF, HATCH, HINGE - END YR 24-JUN-2016 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84585046

HINGE

2шт.

2

84277677

PIN,8mm OD x 68mm L

D=8mm

2шт.

3

800-436

CIRCLIP,M6

2шт.

4

84276011

BUSHING,8mm ID x 10mm OD x 11mm L

10mm OD x 8mm ID x 11mm H

4шт.

5

84603996

BRACKET

LH

1шт.

5

84604010

BRACKET

RH

1шт.

6

14600670

LOCK PIN,M5 x 16, Slotted

2шт.

7

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

8

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

6шт.

9

84187816

SCREW,Torx Pan Hd, M6 x 12mm, Cl 8.8, POL

6шт.

10

12640604

WASHER,6.15mm ID x 25mm OD x 2mm Thk

2шт.
