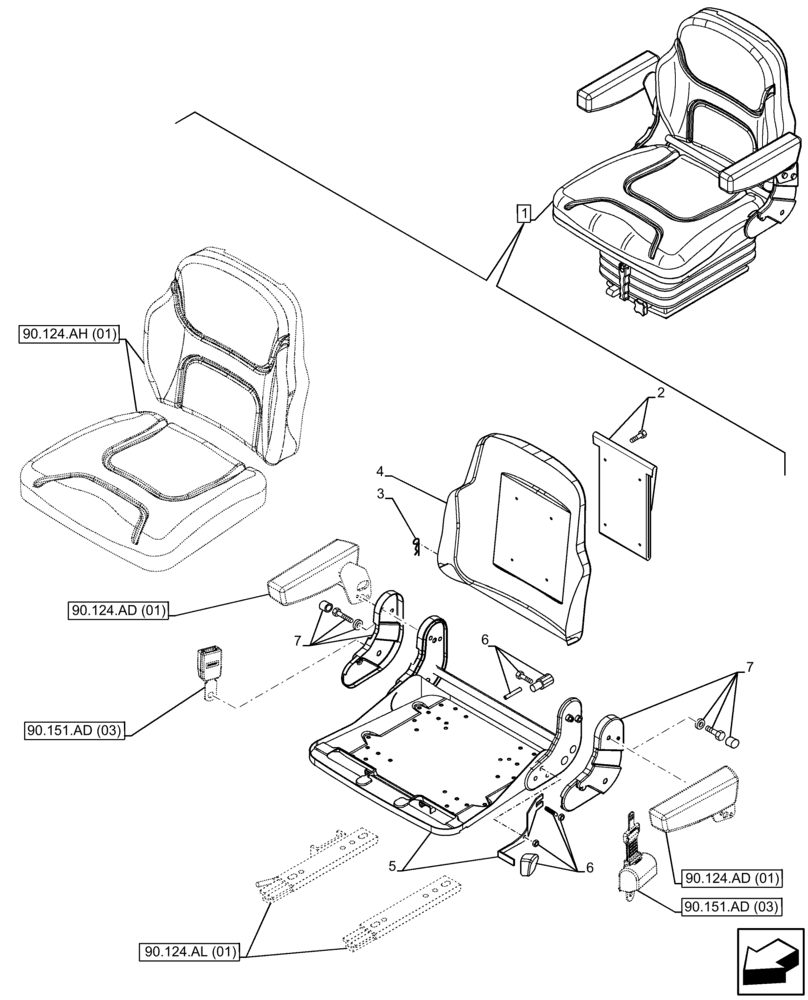

Запчасти Case IH FARMALL 75C (90.124.AM[01]) - VAR - 331850 - DRIVER SEAT (W/ ARMREST), FRAME, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84301433

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2 - 7

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Figure 55.512.CQ, 90.124.AD, 90.124.AE (01), 90.124.AH, 90.124.AK (01) (02), 90.124.AL, 90.151.AD (03)

1шт.

2

84351150

KIT

Vinyl Document Pouch

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Backrest Frame, Incl in 1

1шт.

5

47388080

KIT

Cushion Support & Hardware

1шт.

6

47387993

KIT

Hardware

1шт.

7

47388032

KIT

Armrest Covers & Hardware

1шт.
