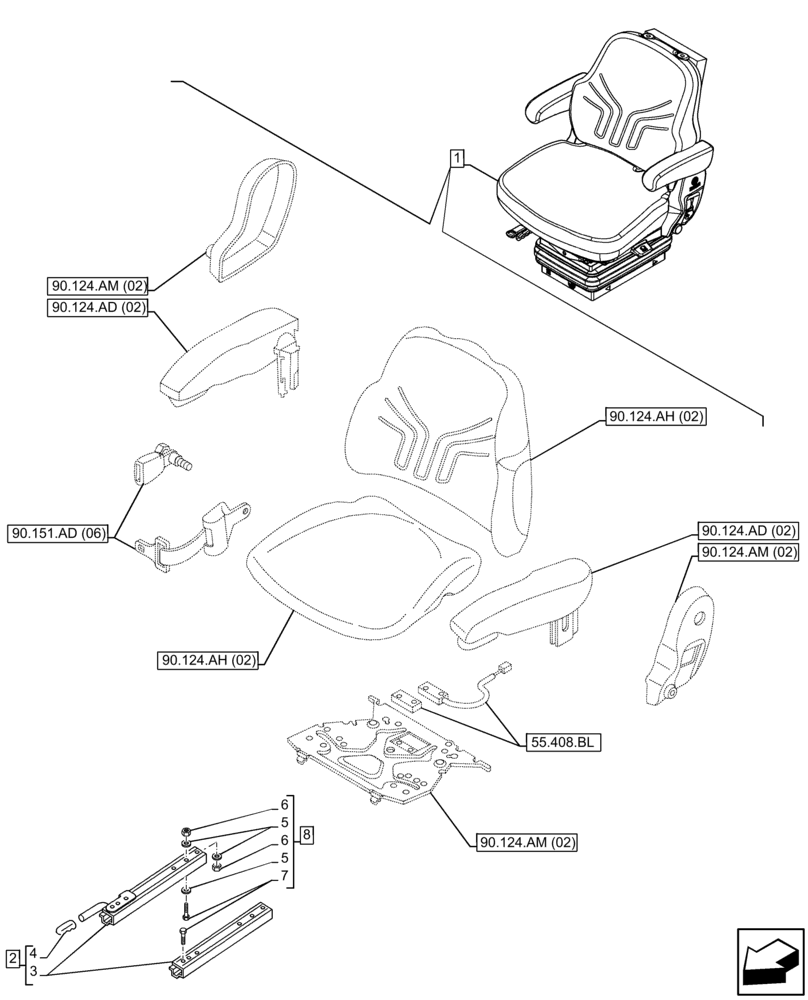

Запчасти Case IH FARMALL 75C (90.124.AL[02]) - VAR - 332850 - DRIVER SEAT (W/ ARMREST, 15° SWIVEL), RAIL ASSY, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
![Схема запчастей Case IH FARMALL 75C - (90.124.AL[02]) - VAR - 332850 - DRIVER SEAT (W/ ARMREST, 15° SWIVEL), RAIL ASSY, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/caseih/5208098.png)
3
2
7
4
90.124.ad (02)
5
90.124.ah (02)
55.408.bl
90.124.ah (02)
6
6
90.124.am (02)
8
1
5
90.151.ad (06)
90.124.am (02)
90.124.am (02)
90.124.ad (02)
№
Артикул
Название
Примечание
Количество
1
47488681
DRIVER SEAT
ASSY, Fabric, Wheat, Incl 2 - 8
1шт.
Air Suspension, W/ Safety Switch, W/ Armrest
1шт.
See Driver Seat Components also in Section, Subsection 55.408, 90.124, 90.151
1шт.
2
87331929
SET OF PARTS
LH and RH Rails, ASSY, Incl 3, 4
1шт.
3
NSS
NOT SOLD SEPARAT
Rails, Incl in 2
1шт.
4
9971715
HANDLE
1шт.
5
NSS
NOT SOLD SEPARAT
Screw, Incl in 8
1шт.
6
NSS
NOT SOLD SEPARAT
Washer, Incl in 8
1шт.
7
NSS
NOT SOLD SEPARAT
Nut, Incl in 8
1шт.
8
47540052
KIT
Fixing Parts, ASSY, Incl 5 - 7
1шт.
Выбрано товаров: 10
