(90.124.AL[01]) - VAR - 331850 - DRIVER SEAT (W/ ARMREST), RAIL ASSY, CAB

Запчасти Case IH FARMALL 75C (90.124.AL[01]) - VAR - 331850 - DRIVER SEAT (W/ ARMREST), RAIL ASSY, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

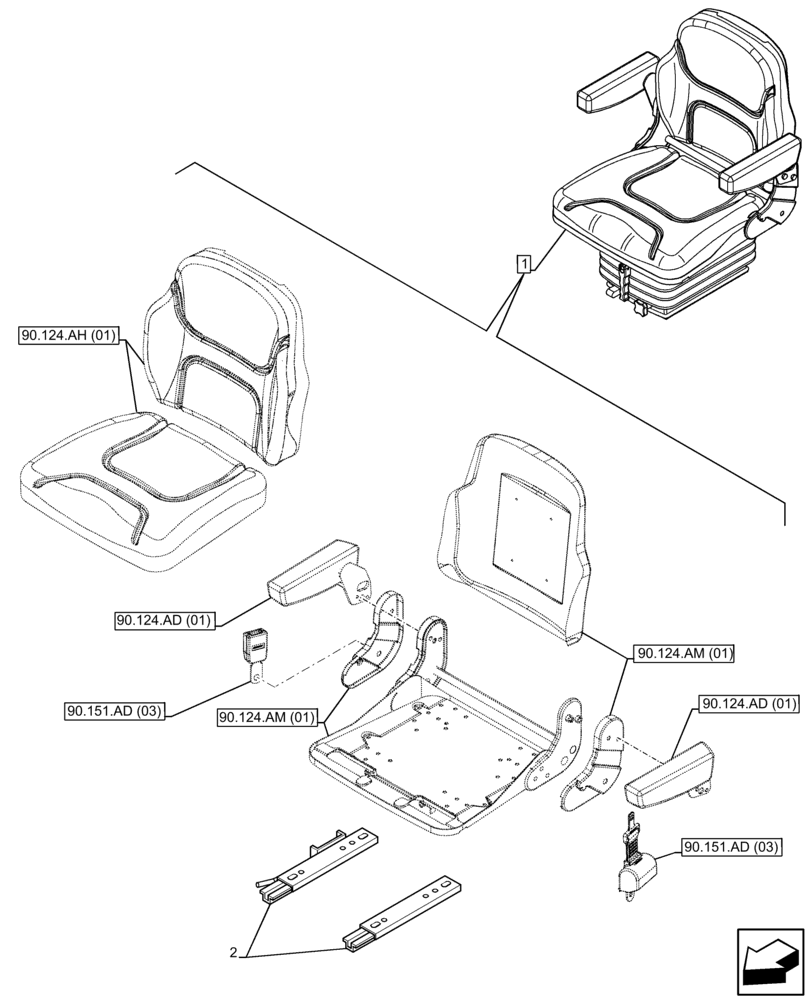

Схема запчастей Case IH FARMALL 75C - (90.124.AL[01]) - VAR - 331850 - DRIVER SEAT (W/ ARMREST), RAIL ASSY, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
90.151.ad (03)
90.124.ad (01)
90.124.ad (01)
90.124.am (01)
90.124.am (01)
90.124.ah (01)
90.151.ad (03)
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84301433

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Figure 55.512.CQ, 90.124.AD, 90.124.AE (01), 90.124.AH, 90.124.AK (01) (02), 90.124.AM, 90.151.AD (03)

1шт.

2

47439040

KIT

LH and RH Rails with Hardware

1шт.
