(90.124.AK[04]) - VAR - 332850 - DRIVER SEAT (W/ ARMREST, 15° SWIVEL), SUSPENSION, COMPONENTS, CAB

Запчасти Case IH FARMALL 75C (90.124.AK[04]) - VAR - 332850 - DRIVER SEAT (W/ ARMREST, 15° SWIVEL), SUSPENSION, COMPONENTS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

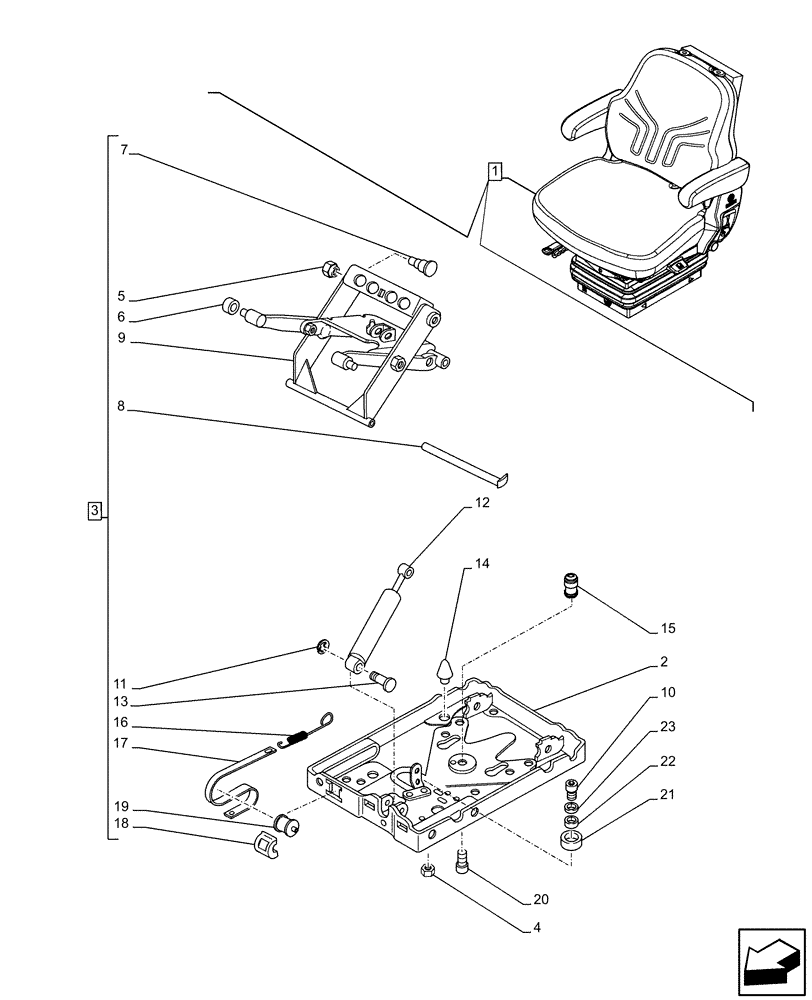

Схема запчастей Case IH FARMALL 75C - (90.124.AK[04]) - VAR - 332850 - DRIVER SEAT (W/ ARMREST, 15° SWIVEL), SUSPENSION, COMPONENTS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
18
8
9
22
14
15
6
20
3
17
2
1
4
7
21
11
19
10
12
13
16
5
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47488681

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2 - 23

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Section, Subsection 55.408, 90.124, 90.151

1шт.

2

82035119

SUSPENSION

Lower Part

1шт.

3

82035107

ARM

Swing, Assy, Incl 5, 6 - 9, 11, 13, 16 - 19

1шт.

4

82034883

NUT,CL 8.8

3шт.

5

82035048

BUSHING

4шт.

6

9958784

SPACER

4шт.

7

9972175

PIN

2шт.

8

9972176

PIN

1шт.

9

NSS

NOT SOLD SEPARAT

ARM Support, Incl in 3

1шт.

10

82035047

SCREW,M8 x 20mm

1шт.

11

9972178

CIRCLIP,M5

2шт.

12

82035058

SHOCK ABSORBER

1шт.

13

9959588

BOLT,M8 x 22mm

2шт.

14

71485476

BUMPER

2шт.

15

87705193

KIT

Air Spring

1шт.

16

9958790

SPRING

1шт.

17

82035102

INDICATOR

Weight

1шт.

18

9958786

GUIDE

1шт.

19

9958785

ROLLER

1шт.

20

345112A1

SCREW,M8 x 20mm L

M8 x 20

1шт.

21

82035088

KIT

1шт.

22

85817525

SPACER

1шт.

23

82034881

WASHER,8.4mm ID

8.4 HV 140

1шт.
