(90.124.AH[01]) - VAR - 331850 - DRIVER SEAT (W/ ARMREST), CUSHION, CAB

Запчасти Case IH FARMALL 75C (90.124.AH[01]) - VAR - 331850 - DRIVER SEAT (W/ ARMREST), CUSHION, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

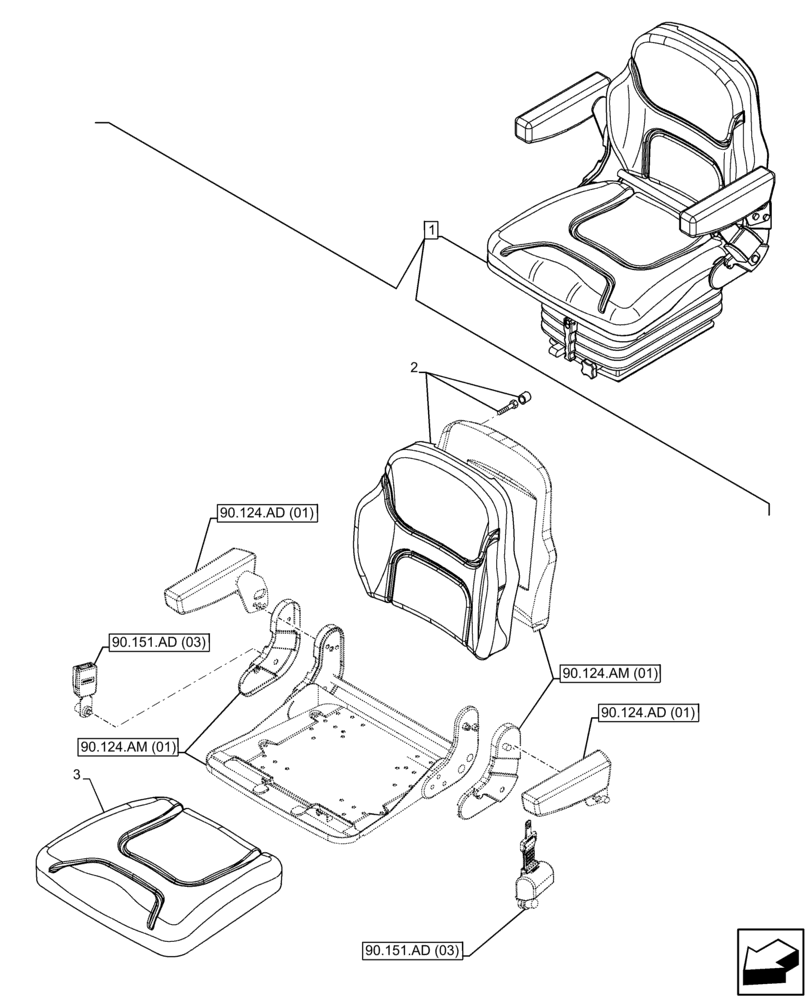

Схема запчастей Case IH FARMALL 75C - (90.124.AH[01]) - VAR - 331850 - DRIVER SEAT (W/ ARMREST), CUSHION, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
90.151.ad (03)
2
90.124.ad (01)
90.124.am (01)
90.124.am (01)
90.151.ad (03)
3
90.124.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84301433

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2, 3

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Figure 55.512.CQ, 90.124.AD, 90.124.AE (01), 90.124.AK (01) (02), 90.124.AL, 90.124.AM, 90.151.AD (03)

1шт.

2

84352163

BACKREST

Fabric, Wheat

1шт.

3

84352165

SEAT CUSHION

Fabric, Wheat

1шт.

Includes Operator's Presence Sensor (DOPS), Not Serviced Separately

1шт.
