(90.124.AE[01]) - VAR - 331850 - DRIVER SEAT (W/ ARMREST), CAB

Запчасти Case IH FARMALL 75C (90.124.AE[01]) - VAR - 331850 - DRIVER SEAT (W/ ARMREST), CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

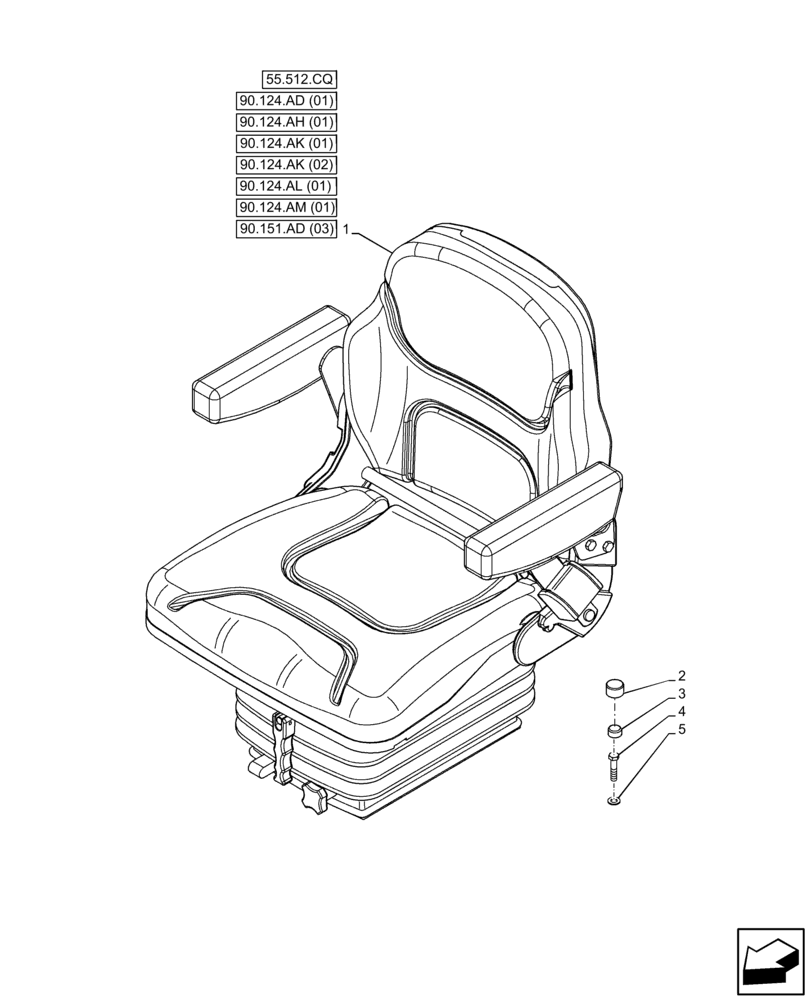

Схема запчастей Case IH FARMALL 75C - (90.124.AE[01]) - VAR - 331850 - DRIVER SEAT (W/ ARMREST), CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.124.ak (02)
1
90.124.ak (01)
90.151.ad (03)
90.124.ah (01)
4
90.124.al (01)
3
5
90.124.ad (01)
90.124.am (01)
2
55.512.cq
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84301433

DRIVER SEAT

ASSY, Fabric, Wheat

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Figure 55.512.CQ, 90.124.AD, 90.124.AH, 90.124.AK (01) (02), 90.124.AL, 90.124.AM, 90.151.AD (03)

1шт.

2

5089481

CAP,17mm OD

17mm OD

4шт.

3

15811487

CAP,13mm x 8.5mm

13 x 8.5 Poly BLK

4шт.

4

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

5

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

4шт.
