(05.100.04[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS

Запчасти Case IH FARMALL 75C (05.100.04[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (05) - SERVICE & MAINTENANCE

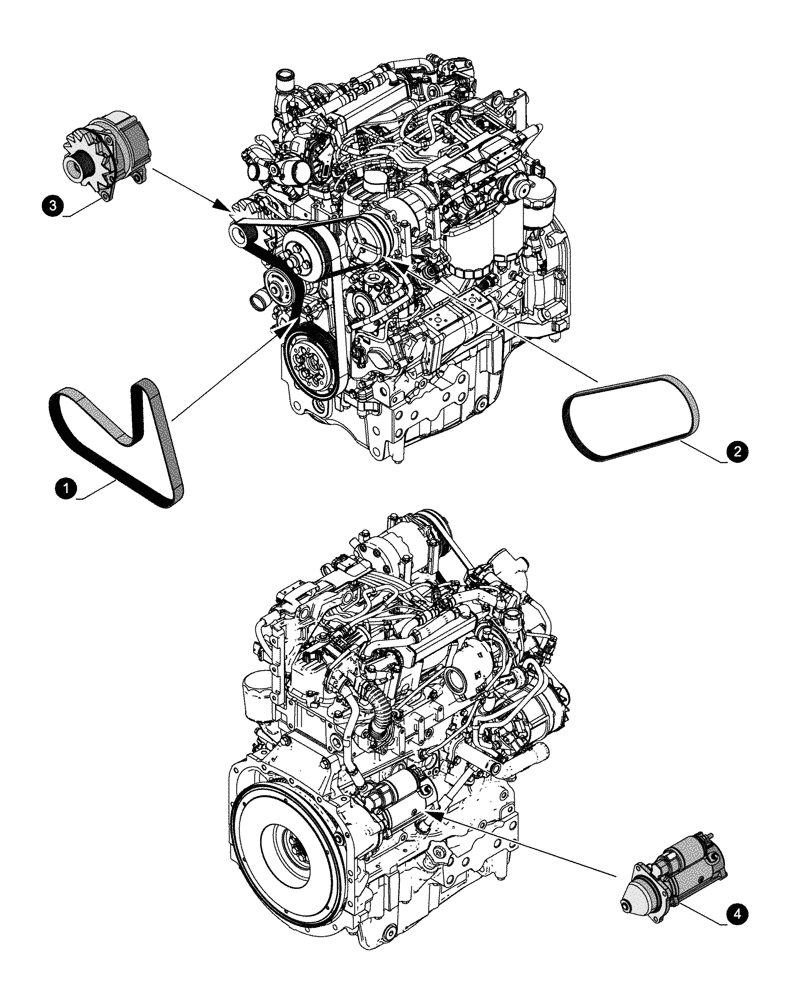

Схема запчастей Case IH FARMALL 75C - (05.100.04[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (05) - SERVICE & MAINTENANCE
4
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47497868

BELT, TRANSMISSION

Main Drive

1шт.

2

47408660

BELT

A/C Compressor

1шт.

3

47383500

ALTERNATOR,14V, 120A, W/Pulley

On Engine

1шт.

4

84208918

STARTER MOTOR,12V, 3.2kW

On Engine

1шт.

Выбрано товаров: 4
