Запчасти Case IH FARMALL 75C (90.120.BH[03]) - VAR - 390901 - DRIVER SEAT, FRAME, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

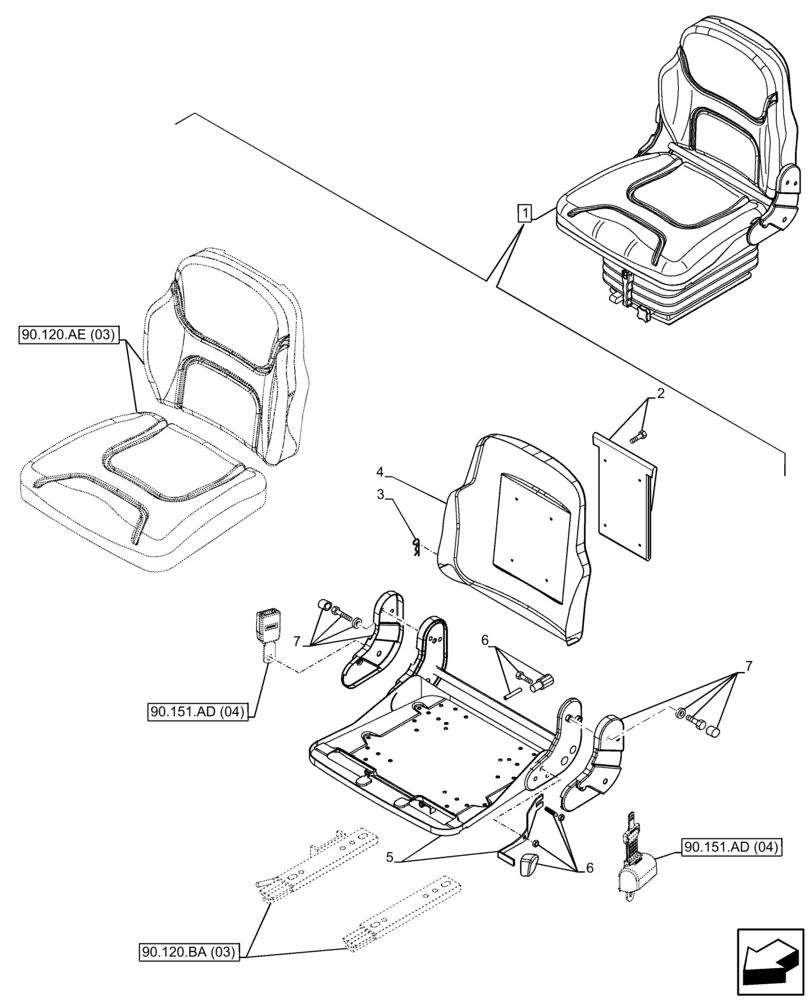

Схема запчастей Case IH FARMALL 75C - (90.120.BH[03]) - VAR - 390901 - DRIVER SEAT, FRAME, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
5
6
90.120.ae (03)
1
90.120.ba (03)
7
4
90.151.ad (04)
2
7
6
90.151.ad (04)

Артикул

Название

Примечание

Количество

1

84352963

SEAT

ASSY, Vinyl, Wheat, Incl 2 - 7

1шт.

Mechanical Suspension, W/ Safety Switch

1шт.

See Driver Seat Components also in Figure 90.120.AD (03), 90.120.AE (03), 90.120.BA (03), 90.120.BB (05) (06), 90.151.AD (04)

1шт.

2

84351150

KIT

Vinyl Document Pouch

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Backrest Frame, Incl in 1

1шт.

5

47388080

KIT

Cushion Support & Hardware

1шт.

6

47387993

KIT

Hardware

1шт.

7

47388032

KIT

Armrest Covers & Hardware

1шт.

Выбрано товаров: 9
