Запчасти Case IH FARMALL 75C (90.120.BB[07]) - VAR - 331156 - DRIVER SEAT (W/ ARMREST), SUSPENSION, BELLOWS, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

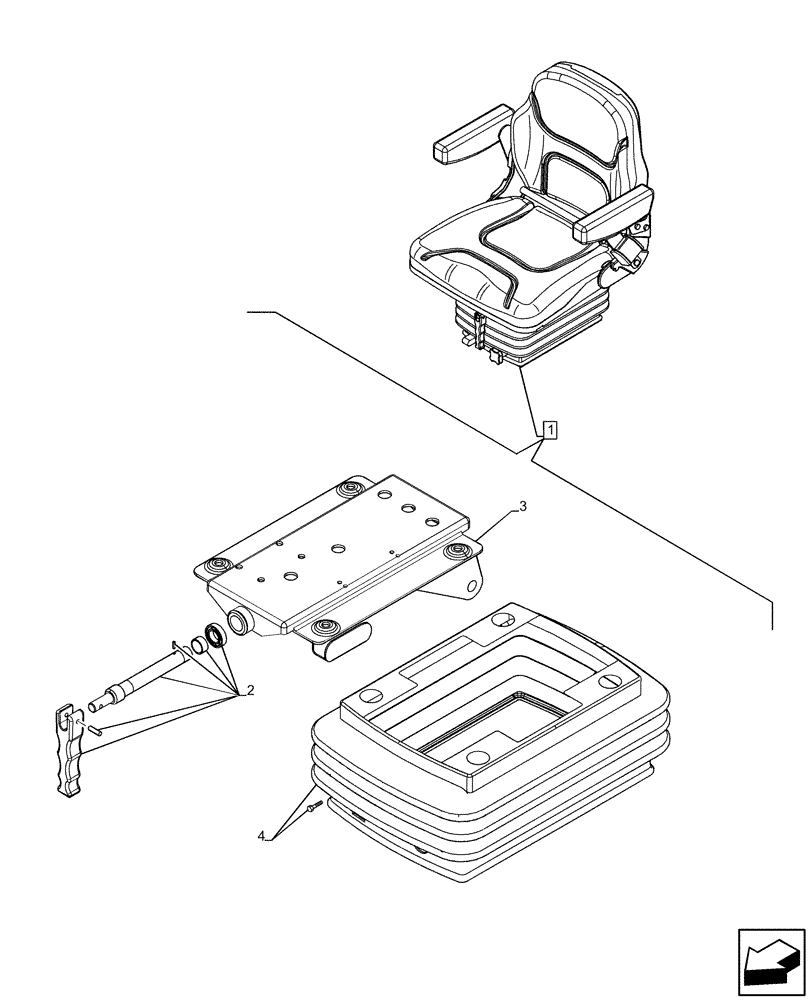

Схема запчастей Case IH FARMALL 75C - (90.120.BB[07]) - VAR - 331156 - DRIVER SEAT (W/ ARMREST), SUSPENSION, BELLOWS, W/O CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
1
2
3
4
2

Артикул

Название

Примечание

Количество

1

84352965

SEAT

ASSY, Vinyl, Wheat, Incl 2 - 4

1шт.

Mechanical Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Figure 90.120.AA (04), 90.120.AD (04), 90.120.AE (04), 90.120.BA (04),90.120.BB (08), 90.120.BH (04), 90.151.AD (05)

1шт.

2

47388078

KIT

Weight Adjustment

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

4

47388492

KIT

Bellows

1шт.

Выбрано товаров: 6
