(90.120.BB[02]) - VAR - 391684 - DRIVER SEAT, SUSPENSION, COMPONENTS, CAB

Запчасти Case IH FARMALL 75C (90.120.BB[02]) - VAR - 391684 - DRIVER SEAT, SUSPENSION, COMPONENTS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

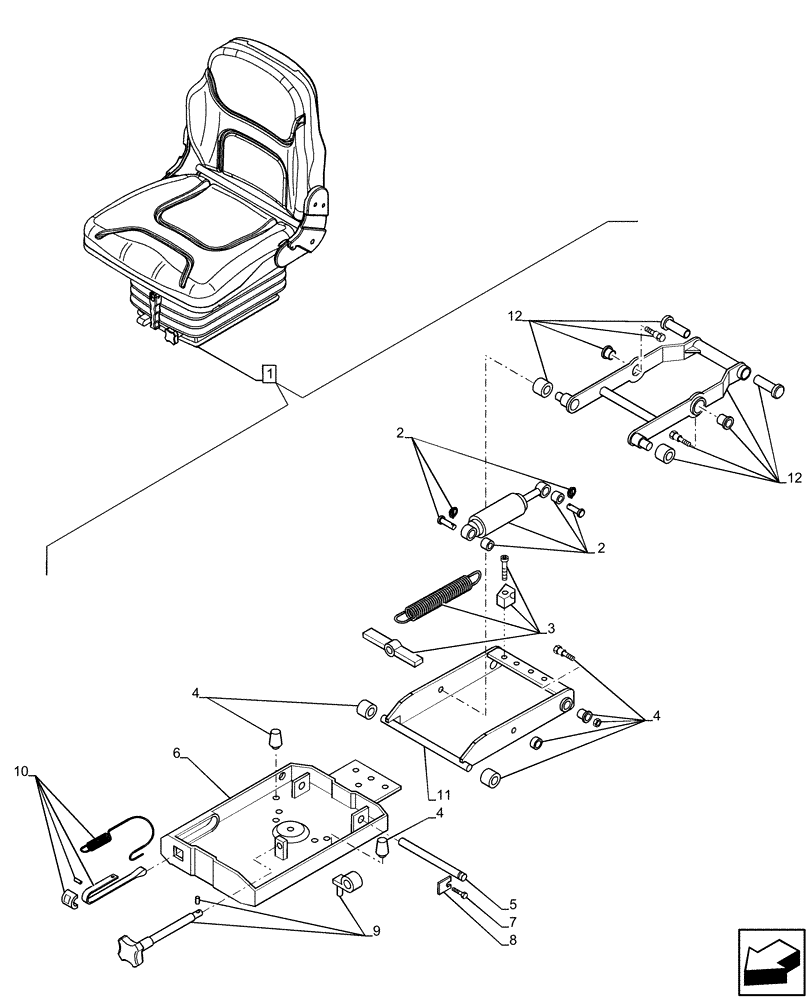

Схема запчастей Case IH FARMALL 75C - (90.120.BB[02]) - VAR - 391684 - DRIVER SEAT, SUSPENSION, COMPONENTS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
1
12
5
2
12
8
3
10
2
7
4
9
6
4
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84347510

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2 - 12

1шт.

Mechanical Suspension, W/ Safety Switch

1шт.

See Driver Seat Components also in Figure 90.120.AA (01), 90.120.AE (01), 90.120.BA (01),90.120.BB (01), 90.120.BH (01), 90.151.AD (01)

1шт.

2

47388487

KIT

Shock Absorber

1шт.

3

47388076

KIT

Springs

1шт.

4

47388486

KIT

Rubber Bump Stop

1шт.

5

NSS

NOT SOLD SEPARAT

Rod, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

1шт.

9

47387994

KIT

Hight Adjustment Lever

1шт.

10

47382403

KIT

Weight Indicator

1шт.

11

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

12

47388497

KIT

Scissor Roller

1шт.
