(90.120.BB[01]) - VAR - 391684 - DRIVER SEAT, SUSPENSION, BELLOWS, CAB

Запчасти Case IH FARMALL 75C (90.120.BB[01]) - VAR - 391684 - DRIVER SEAT, SUSPENSION, BELLOWS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

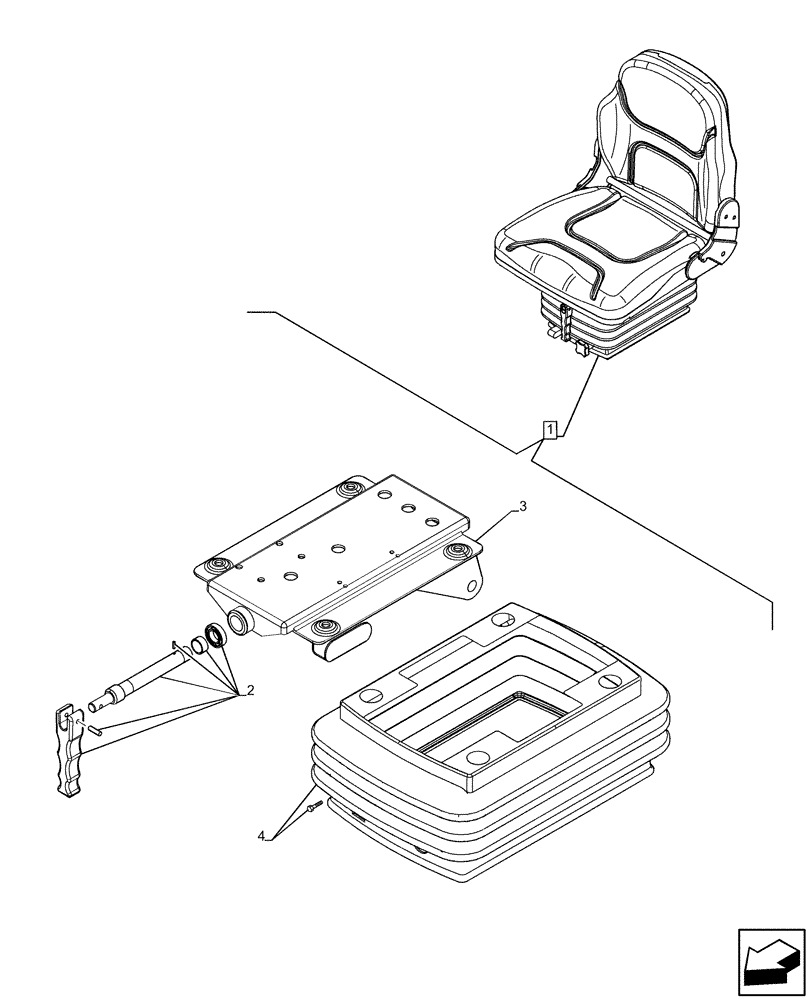

Схема запчастей Case IH FARMALL 75C - (90.120.BB[01]) - VAR - 391684 - DRIVER SEAT, SUSPENSION, BELLOWS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84347510

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2 - 4

1шт.

Mechanical Suspension, W/ Safety Switch

1шт.

See Driver Seat Components also in Figure 90.120.AA (01), 90.120.AE (01), 90.120.BA (01),90.120.BB (02), 90.120.BH (01), 90.151.AD (01)

1шт.

2

47388078

KIT

Weight Adjustment

1шт.

3

NSS

NOT SOLD SEPARAT

Support, Incl in 1

1шт.

4

47388492

KIT

Bellows

1шт.

Выбрано товаров: 6
