Запчасти Case IH FARMALL 75C (05.100.03) - CAPACITIES (05) - SERVICE & MAINTENANCE

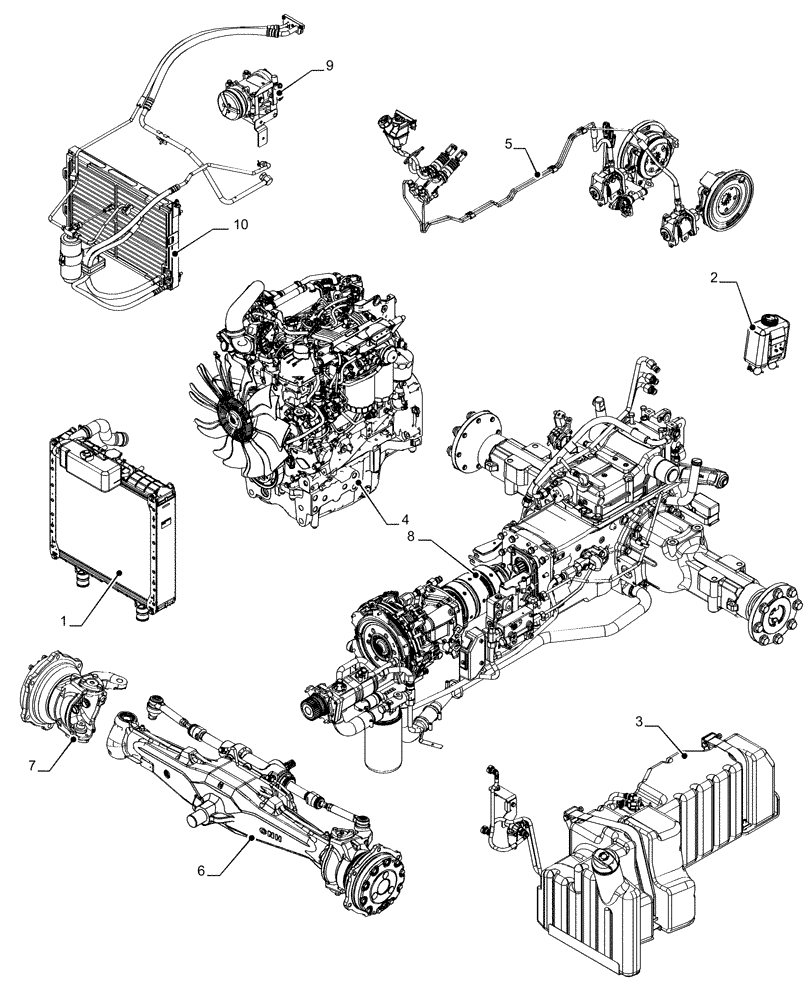

Схема запчастей Case IH FARMALL 75C - (05.100.03) - CAPACITIES (05) - SERVICE & MAINTENANCE
7
1
10
9
3
4
8
2
6
5

Артикул

Название

Примечание

Количество

1

-

Cooling System (Qty in Liters), (3.7 US Gallons)

14шт.

Recommended Product: CASE IH AKCELA ACTIFULL OT® Extended Life Coolant

1шт.

Specifications : International (ASTM 6310) - OAT Type

1шт.

Recommended Product: 50% CASE IH AKCELA PREMIUM Anti-Freeze + 50% Water

1шт.

Specifications : Case IH (MS1710) - IAT Type

1шт.

for W/O CAB Models

1шт.

1

-

Cooling System (Qty in Liters), (4.2 US Gallons)

16шт.

Recommended Product: CASE IH AKCELA ACTIFULL OT® Extended Life Coolant

1шт.

Specifications : International (ASTM 6310) - OAT Type

1шт.

Recommended Product: 50% CASE IH AKCELA PREMIUM Anti-Freeze + 50% Water

1шт.

Specifications : Case IH (MS1710) - IAT Type

1шт.

for W/ CAB Models

1шт.

2

-

Windscreen Washer Reservoir (Qty in Liters), (0.5 US Gallons)

2шт.

Recommended Product: Water + Liquid

1шт.

for W/ CAB Models

1шт.

3

-

Fuel Tank (Qty in Liters), (23.8 US Gallons)

90шт.

Recommended Product: Decanted, Filtered Diesel Fluid

1шт.

4

-

Engine Sump, Minimum (Qty in Liters), (1.7 US Gallons)

6.4шт.

4

-

Engine Sump, Maximum (Qty in Liters), (2.2 US Gallons)

8.5шт.

Recommended Product: CASE IH AKCELA UNITEK NO.1™ SBL CJ-4 SAE 10W-40 / CASE IH AKCELA UNITEK NO.1™ SSL CJ-4 SAE 0W-40

1шт.

Specifications : Case IH (MAT3521) International (API CJ-4) (ACEA E9)

1шт.

5

-

Brake Control Circuit (Qty in Liters), (0.2 US Gallons)

1шт.

Recommended Product: CASE IH AKCELA LHM Fluid

1шт.

Specifications : International (ISO 7308)

1шт.

6

-

Front Axle Housing (Qty in Liters), (1.2 US Gallons)

4.5шт.

Recommended Product: CASE IH AKCELA NEXPLORE™ Fluid

1шт.

Specifications : Case IH (MAT3525) International (API GL-4) (ISO 32/46) (SAE 10W-30)

1шт.

7

-

Front Axle Final Drives (Qty in Liters), Each (0.3 US Gallons)

1.2шт.

Recommended Product: CASE IH AKCELA NEXPLORE™ Fluid

1шт.

Specifications : Case IH (MAT3525) International (API GL-4) (ISO 32/46) (SAE 10W-30)

1шт.

8

-

Full Transmission/Rear Axle (Qty in Liters), (16.6 US Gallons)

63шт.

Recommended Product: CASE IH AKCELA NEXPLORE™ Fluid

1шт.

Specifications : Case IH (MAT3525) International (API GL-4) (ISO 32/46) (SAE 10W-30)

1шт.

8

-

Rear Transmission, Gearbox, Hydraulic Lift, PTO & Hydraulic Steering (Qty in Liters), (7.92 US Gallons)

30шт.

Recommended Product: CASE IH AKCELA NEXPLORE™ Fluid

1шт.

Specifications : Case IH (MAT3525) International (API GL-4) (ISO 32/46) (SAE 10W-30)

1шт.

for Models W/ Mechanical Transmission

1шт.

8

-

Rear Transmission, Gearbox, Hydraulic Lift, PTO & Hydraulic Steering (Qty in Liters), (9.24 US Gallons)

35шт.

Recommended Product: CASE IH AKCELA NEXPLORE™ Fluid

1шт.

Specifications : Case IH (MAT3525) International (API GL-4) (ISO 32/46) (SAE 10W-30)

1шт.

for Models W/ Hydraulic Transmission

1шт.

9

-

Air Conditioning Compressor Oil (Qty in Liters), (0.05 US Gallons)

1шт.

Specifications : International (R-134)

1шт.

for W/ CAB Models

1шт.

10

-

Air Conditioning Refrigerant (Qty in Liters), (0.34 US Gallons)

1.3шт.

Specifications : International (SP10)

1шт.

for W/ CAB Models

1шт.
