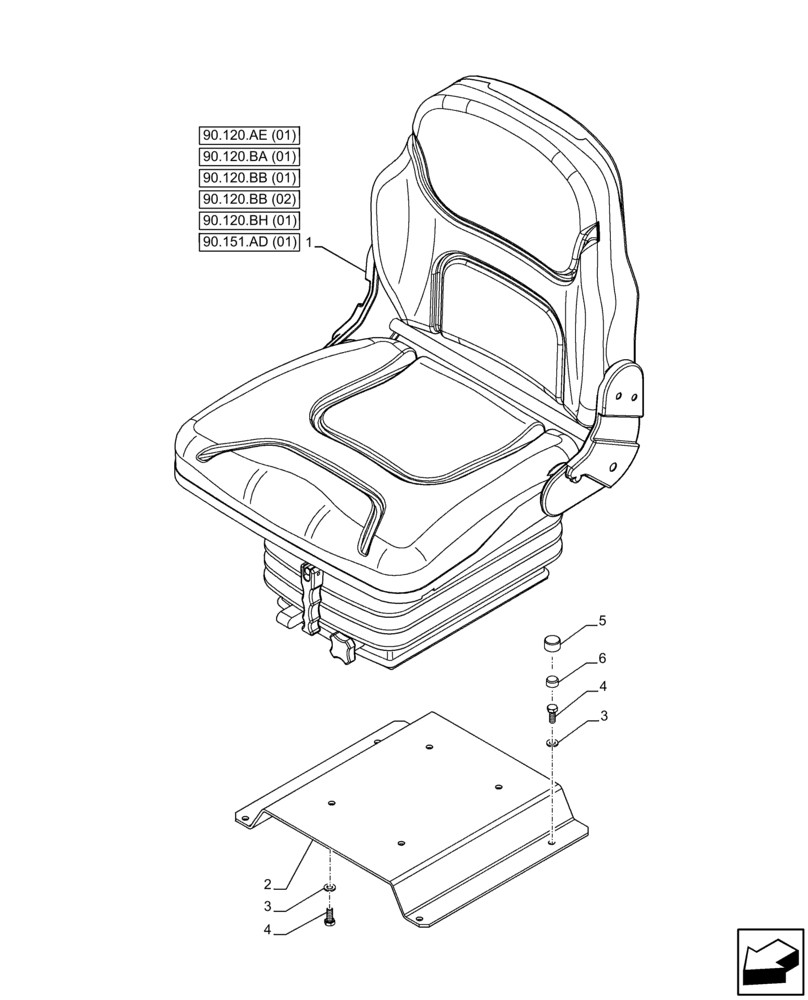

Запчасти Case IH FARMALL 75C (90.120.AD[01]) - VAR - 391684 - DRIVER SEAT, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84347510

DRIVER SEAT

ASSY, Fabric, Wheat

1шт.

Mechanical Suspension, W/ Safety Switch

1шт.

See Driver Seat Components also in Figure 90.120.AE (01), 90.120.BA (01), 90.120.BB (01) (02), 90.120.BH (01), 90.151.AD (01)

1шт.

2

84309301

SEAT SUPPORT

1шт.

3

11194074

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.9mm Thk

8шт.

4

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

8шт.

5

5089481

CAP,17mm OD

17mm OD

4шт.

6

15811487

CAP,13mm x 8.5mm

13 x 8.5 Poly BLK

4шт.
