(90.118.BX[02]) - VAR - 331460 - LADDER, NARROW (12.4/32 - 12.4/36 TYRE/TIRE)

Запчасти Case IH FARMALL 75C (90.118.BX[02]) - VAR - 331460 - LADDER, NARROW (12.4/32 - 12.4/36 TYRE/TIRE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

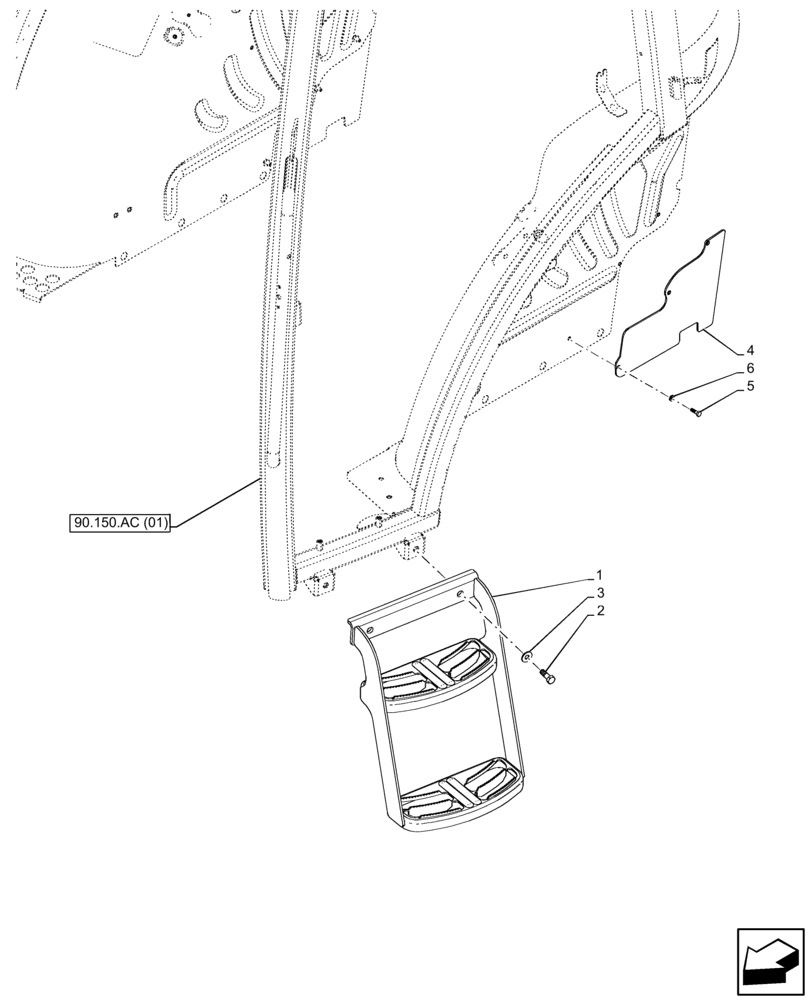

Схема запчастей Case IH FARMALL 75C - (90.118.BX[02]) - VAR - 331460 - LADDER, NARROW (12.4/32 - 12.4/36 TYRE/TIRE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
2
3
6
1
90.150.ac (01)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84314632

LADDER

1шт.

2

87026053

BOLT,Hex, M10 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

3

12646824

WASHER,10.2mm ID x 25mm OD x 2mm Thk

2шт.

4

84477830

STEEL PLATE

1шт.

5

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

6

86639317

WASHER,6.4mm ID x 13mm OD x 2mm Thk

3шт.
