(90.118.BM ) - VAR - 330885, 743576 - REAR VIEW MIRROR, CAB

Запчасти Case IH FARMALL 75C (90.118.BM ) - VAR - 330885, 743576 - REAR VIEW MIRROR, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

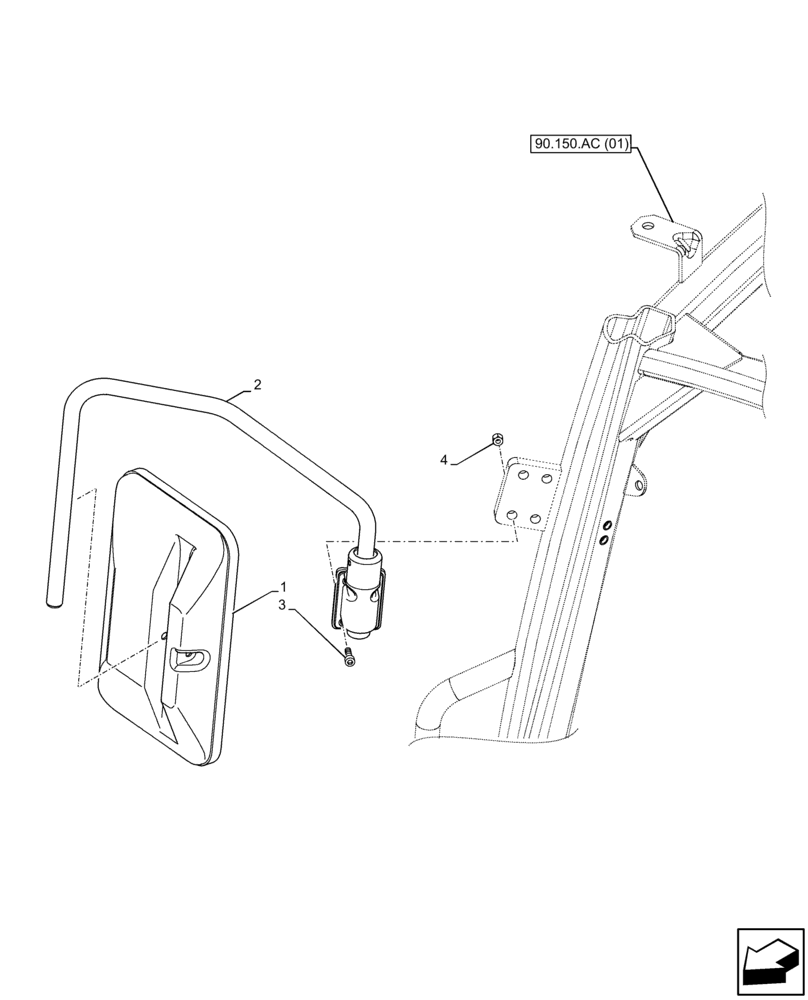

Схема запчастей Case IH FARMALL 75C - (90.118.BM ) - VAR - 330885, 743576 - REAR VIEW MIRROR, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
1
4
3
90.150.ac (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5091914

REAR VIEW MIRROR

1шт.

2

84223825

MIRROR ARM

1шт.

3

14305331

HEX SOC SCREW,M6 x 20mm, Cl 10.9, Full Thd

4шт.

4

12574211

NUT,M6 x 1, Cl 8

4шт.
