Запчасти Case IH FARMALL 75C (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

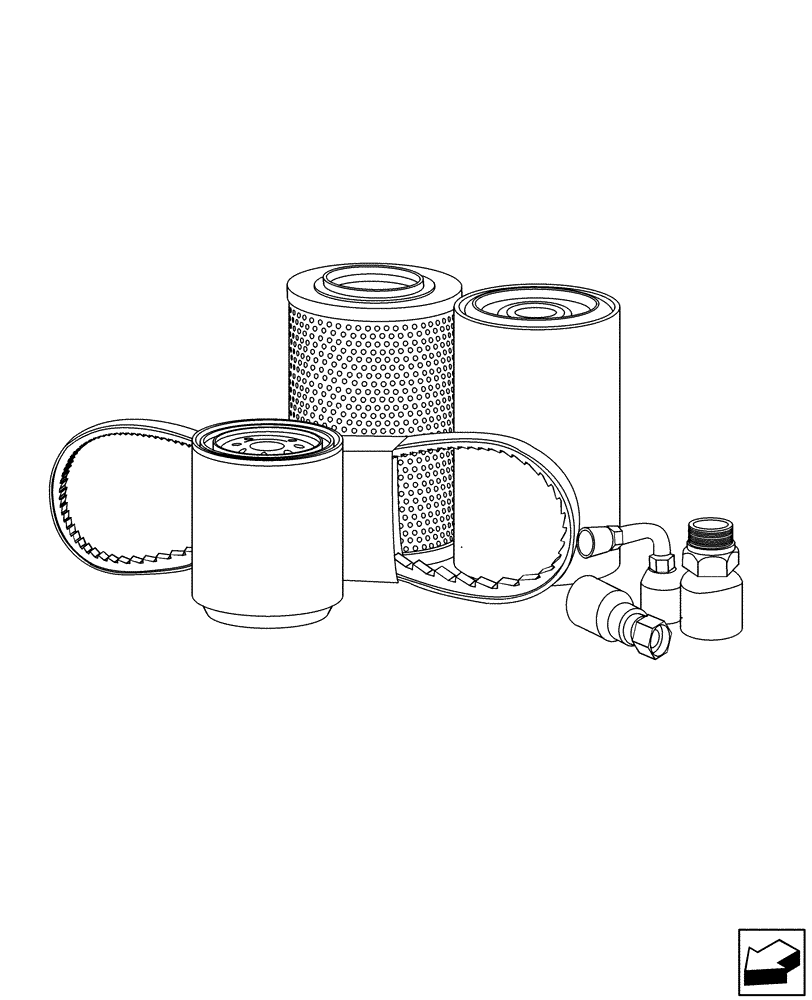

Схема запчастей Case IH FARMALL 75C - (05.100.02) - INITIAL STOCKING LIST (LIST B) (05) - SERVICE & MAINTENANCE

Артикул

Название

Примечание

Количество

1

5801446795

GASKET

Cylinder Head Cover

1шт.

2

5801450757

CYLINDER HEAD GASKET,0.80mm Thk

0,8mm, 1st Hole

1шт.

3

5801450758

CYLINDER HEAD GASKET,0.69mm Thk

0,7mm, 2nd Hole

1шт.

4

504164360

GASKET

Engine Oil Pan

1шт.

5

5801506502

SENSOR

Water in Fuel on Filter

1шт.

6

504231722

DIPSTICK

Engine Oil

1шт.

7

5801367249

THERMOSTAT

Engine

1шт.

8

504385442

GASKET

Thermostat

1шт.

9

5801464247

SENSOR

Engine Coolant

1шт.

10

4897242

SENSOR

Crankshaft Speed

1шт.

11

5801600537

SENSOR

Phase Engine

1шт.

12

2852889

PRESSURE SWITCH

Engine Oil

1шт.

13

47124937

SEAL KIT

on 4WD Steering Cylinder PN 47136495

1шт.

14

84273815

SOLENOID VALVE,12V DC, 7.3Ohm

4WD Engagement

1шт.

15

87494633

PRESSURE SWITCH

Power Steering, Oil Minimum Pressure

1шт.

16

47373364

SEAL KIT

on 2WD Steering Cylinder PN 84249611

1шт.

17

87494632

PRESSURE SWITCH,M12 x 1.5

Power Steering, Oil Minimum Pressure (W/O CAB)

1шт.

18

84262551

SEAL KIT

for Rear Hydraulic Lift

1шт.

19

84263732

SEAL KIT

for Rear Hydraulic Lift Control Valve

1шт.

20

47383500

ALTERNATOR,14V, 120A, W/Pulley

120A

1шт.

21

84394768

SENSOR

Temperature on DPF Filter Intake

1шт.

22

47406556

TEMPERATURE SENDER

Temperature on DPF Filter First Section

1шт.

23

47445111

SENSOR

Lambda Uhego

1шт.

24

84539252

SENSOR

Air Temperature

1шт.

25

84597886

SENSOR

Hall Effect, Speed

1шт.

26

84416717

IGNITION KEY

1шт.

27

84416718

IGNITION SWITCH,50A

50A, Off/Run/Ignition

1шт.

28

84565657

SENSOR

Restriction on Air Filter

1шт.

29

87679916

LOCKABLE FUEL CAP

Fuel Tank, with Chain

1шт.

30

84385872

BRAKE DISC,39mm ID x 165.25mm OD x 4.75mm Thk

Qty 6 for Rops Models, Qty 8 for CAB Models

1шт.

31

5119327

BRAKE DISC,94.3mm ID x 171.1mm OD x 2.65mm Thk

Qty 2 for Rops Models, Qty 4 for CAB Models

1шт.

32

5173264

FUSE,30A, Maxi, Green

Maxi, 30Amp, (W/O CAB)

1шт.

33

84346681

WIPER ARM,Dual/Parallel Arm, 500mm L

Parallel Arm, (W/ CAB)

1шт.

34

87319297

WIPER BLADE,Single, 500mm L

Parallel Arm, 500mm, (W/ CAB)

1шт.

35

84605257

WIPER,Single, 350mm L

Arm & Blade, Rear, (W/ CAB)

1шт.

36

84392603

SEAL KIT

Brake Master Cylinder PN 84392195, (W/ CAB)

1шт.

37

10861290

BULB,12V, 35W

12V/35W, on Worklamp 5129461 (W/O CAB)

1шт.

38

14144690

BULB,P21/5W, 12V, 21/5W

2 Filament 12V 21W/5W, Rear Lights on Fender

1шт.

39

14148090

BULB,PY21W, 12V, 21W

12V 21W, Rear Lights on Fender

1шт.

40

529068

BULB,#1156, 12V, 21W

Spherical

1шт.

Front Headlamps on Grabrails & Worklights on Roof (W/ CAB)

1шт.

41

47429996

BULB,Type 886, Halogen, 12V, 50W

886, Hood Headlamps

1шт.

42

87283179

BULB,H4, 12V, 60/55W

H4, Hood Headlamps

1шт.

43

84157157

RELAY,12V, 20A, Micro

Microrelay 12V-20A

1шт.

44

84157161

RELAY,12V, 20A

Microrelay 12V-10/20A

1шт.

45

10401190

FUSE,20A, Mini, Yellow

20A

1шт.

46

87522595

FUSE,7.5A, Mini, Brown

7.5A

1шт.

47

84153830

FUSE,5A, Mini, Beige

5A

1шт.

48

87522597

FUSE,10A, Mini, Red

10A

1шт.

49

87524877

FUSE,15A, Mini, Blue

15A

1шт.

50

84157159

FUSE,40A, Maxi, Orange

Maxi, 40A

1шт.

51

82030798

RELAY,12V, 70A

Mini, 12V-70A

1шт.

52

87604032

RELAY,12V, 30A, Micro

12V-30A Red N.O.

1шт.

53

87548130

FUSE,60A, Midival

PDU, Midival, 60 Amp

2шт.

54

87422637

FUSE,125A, Midival

PDU, Megaval, 125 Amp

1шт.

55

BCM34770W

WET BATTERY

100A/h, US

1шт.

55

CCM34770W

WET BATTERY

100A/h, CAN

1шт.

Выбрано товаров: 57
