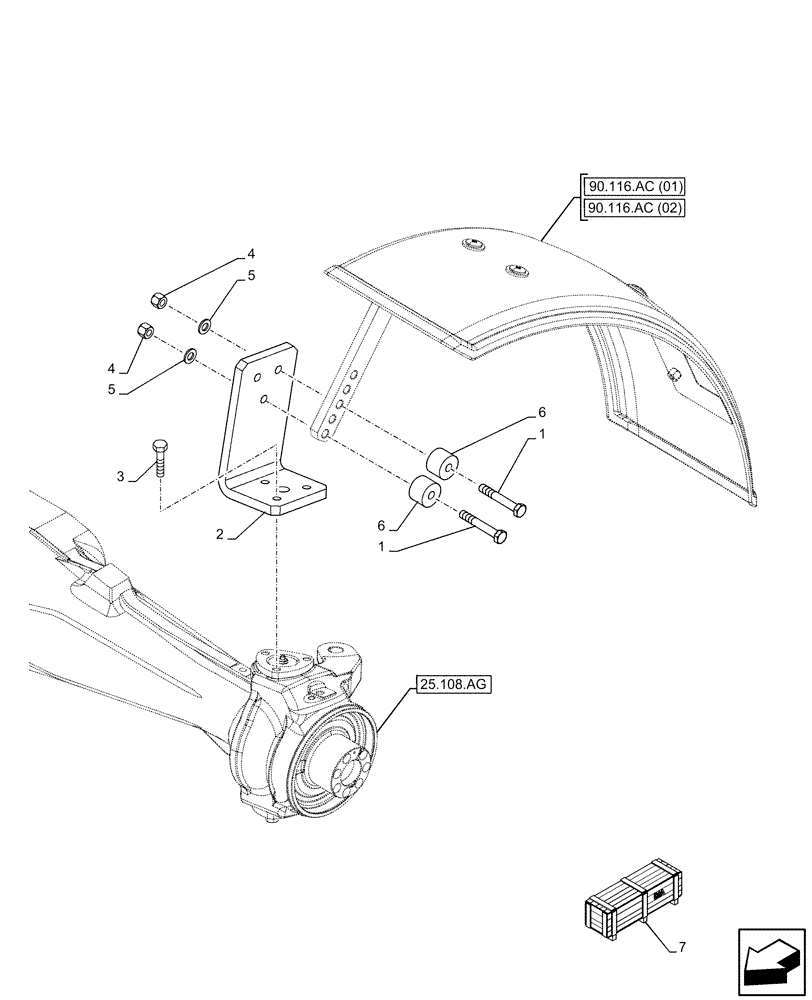

Запчасти Case IH FARMALL 75C (90.116.BA[01]) - VAR - 330484, 330485, 744673 - FRONT FENDER, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

15541424

SCREW,Hex, M12 x 1.25 x 80mm, Cl 8.8

2шт.

2

5185292

SUPPORT

1шт.

3

14233934

BOLT,Hex, M10 x 1.25 x 45mm, Cl 10.9

3шт.

4

16105014

LOCK NUT,M12 x 1.25

2шт.

5

14496704

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

6

5166193

SPACER,13mm ID x 40mm OD x 28mm L

13mm x 40mm x 28mm

2шт.

7

710167250

DIA KIT, TRACTOR

Narrow Cover Front Fenders (310mm) for Front Axle W/O Brakes, Incl 1-6

1шт.

to see the full DIA KIT composition look for all the Figures where the DIA KIT P/N is shown

1шт.

7

710168250

DIA KIT, TRACTOR

Wide Cover Front Fenders (400mm) for Front Axle W/O Brakes, Incl 1-6

1шт.

to see the full DIA KIT composition look for all the Figures where the DIA KIT P/N is shown

1шт.
