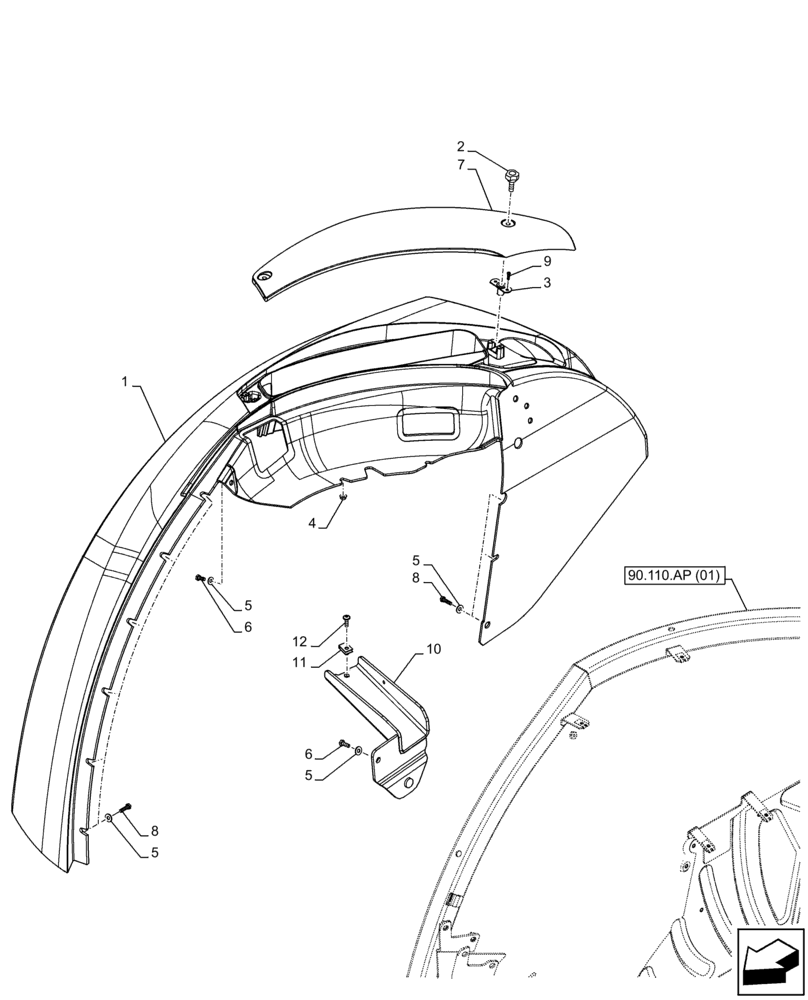

Запчасти Case IH FARMALL 75C (90.116.AC[11]) - VAR - 333483, 335620, 335624, 743599, 744599 - REAR FENDER, W/O CAB (BLACK) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84598417

FENDER

LH, Black

1шт.

1

84598438

FENDER

RH, Black

1шт.

2

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

18шт.

3

15956607

SCREW,Pan Hd, M3 x 3 x 12mm

M3 x 12

8шт.

4

84316290

CAPPING

RH

1шт.

4

84316287

CAPPING

LH

1шт.

5

13577701

WASHER,5.15mm ID x 15mm OD x 1.2mm Thk

5.15 x 15 x 1.2

4шт.

6

10444511

BOLT,Hex, M4 x 10mm, Cl 5.8, Full Thd

4шт.

7

84346552

BRACKET

LH

1шт.

7

84346368

BRACKET

RH

1шт.

8

84499354

PLATE

4шт.

9

84592941

TOP COVER

LH, Black

1шт.

9

84593315

TOP COVER

RH, Black

1шт.

10

84315605

BRACKET

LH

1шт.

10

84315616

BRACKET

RH

1шт.

11

14189071

SPRING NUT,M6

M6

2шт.

12

87698793

SCREW,Hex, M6 x 20mm L

M6 x 20

2шт.

13

86980359

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

14

11193274

BELLEVILLE WASHER,M6 Bolt Size x 15mm OD x 1.2mm Thk

22шт.

15

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

M6

4шт.

16

84499613

FIXING KNOB

4шт.
