(90.116.AC[07]) - VAR - 335622, 335624, 744599 - REAR FENDER EXTENSION, WIDE 150 MM

Запчасти Case IH FARMALL 75C (90.116.AC[07]) - VAR - 335622, 335624, 744599 - REAR FENDER EXTENSION, WIDE 150 MM (90) - PLATFORM, CAB, BODYWORK AND DECALS

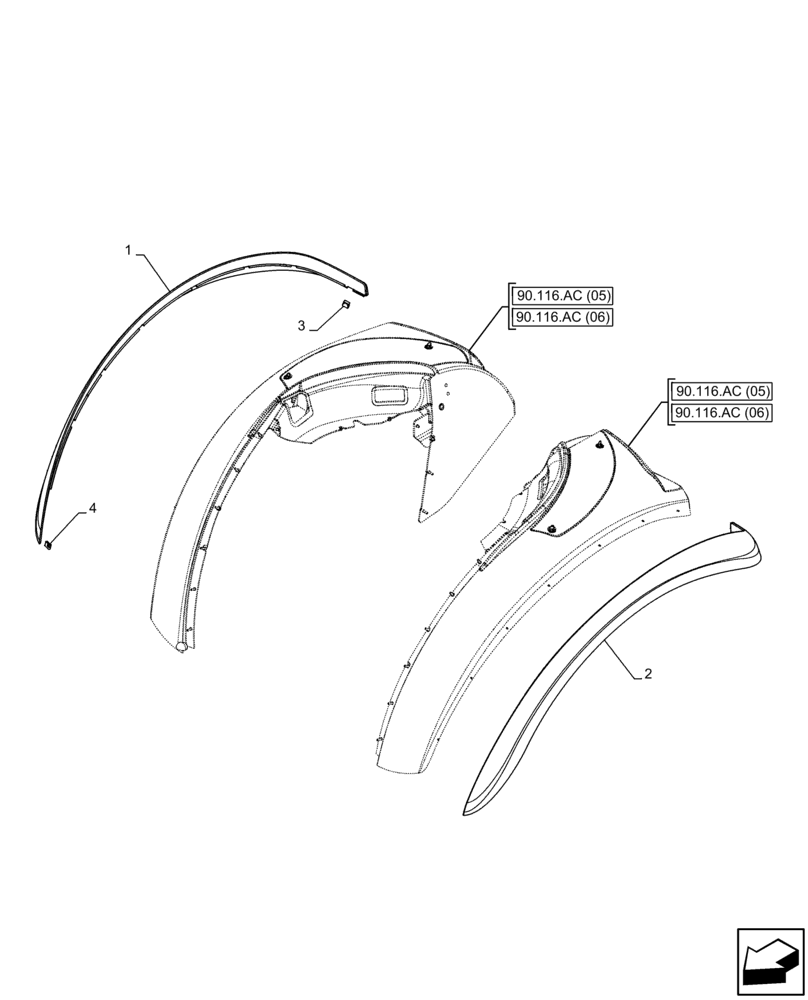

Схема запчастей Case IH FARMALL 75C - (90.116.AC[07]) - VAR - 335622, 335624, 744599 - REAR FENDER EXTENSION, WIDE 150 MM (90) - PLATFORM, CAB, BODYWORK AND DECALS
90.116.ac (05)
90.116.ac (05)
90.116.ac (06)
1
4
3
2
90.116.ac (06)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84290224

FENDER EXTENSION

RH, Black

1шт.

2

84290223

FENDER EXTENSION

LH, Black

1шт.

3

82010838

SPRING CLIP,0.5mm Thk

Rounded

7шт.

4

47467257

CLIP

2шт.

Выбрано товаров: 4
