(90.116.AC[04]) - VAR - 330486, 744674 - DYNAMIC FRONT FENDER (400MM)

Запчасти Case IH FARMALL 75C (90.116.AC[04]) - VAR - 330486, 744674 - DYNAMIC FRONT FENDER (400MM) (90) - PLATFORM, CAB, BODYWORK AND DECALS

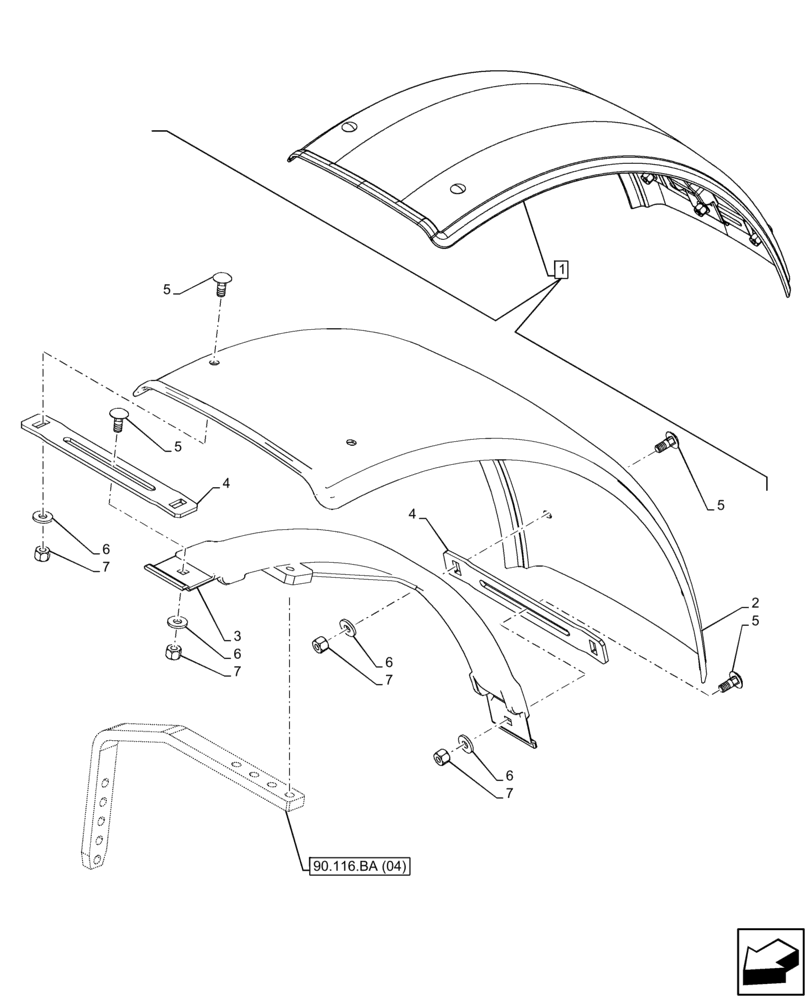

Схема запчастей Case IH FARMALL 75C - (90.116.AC[04]) - VAR - 330486, 744674 - DYNAMIC FRONT FENDER (400MM) (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
6
6
7
6
6
90.116.ba (04)
5
5
4
5
5
1
7
7
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87529751

FRONT FENDER,400mm

400mm, ASSY, Incl 2 - 7

2шт.

2

5185182

COVER ASSY

Black

1шт.

3

47132609

SUPPORT

1шт.

4

82021040

SUPPORT

2шт.

5

82021059

BOLT,Hex, M10 x 1.25 x 31mm

M10 x 1.25 x 31mm, Hex

6шт.

6

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

7

12574521

LOCK NUT,M10 x 1.25, Cl 10

6шт.

Выбрано товаров: 7
