(90.116.AC[03]) - VAR - 338486, 744674 - DYNAMIC FRONT FENDER (310MM)

Запчасти Case IH FARMALL 75C (90.116.AC[03]) - VAR - 338486, 744674 - DYNAMIC FRONT FENDER (310MM) (90) - PLATFORM, CAB, BODYWORK AND DECALS

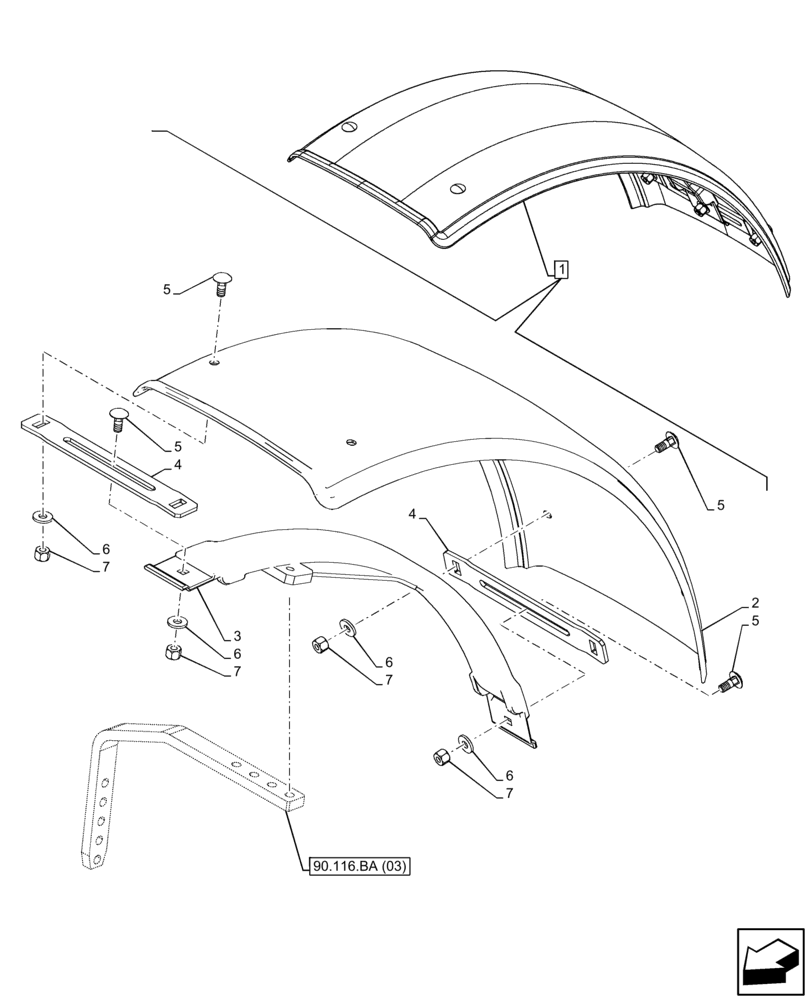

Схема запчастей Case IH FARMALL 75C - (90.116.AC[03]) - VAR - 338486, 744674 - DYNAMIC FRONT FENDER (310MM) (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
3
7
5
2
6
7
4
7
6
90.116.ba (03)
1
5
6
5
5
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87484873

FRONT FENDER,355mm

310mm, ASSY, Incl 2 - 7

2шт.

2

87484889

COVER

Black

1шт.

3

47132609

SUPPORT

1шт.

4

82021040

SUPPORT

2шт.

5

82021059

BOLT,Hex, M10 x 1.25 x 31mm

M10 x 1.25 x 31mm, Hex

6шт.

6

12626201

WASHER,10.2mm ID x 25mm OD x 3mm Thk

6шт.

7

12577211

LOCK NUT,M10 x 1.5mm Pitch, 12.30mm High, Cl 8, ZND

6шт.
