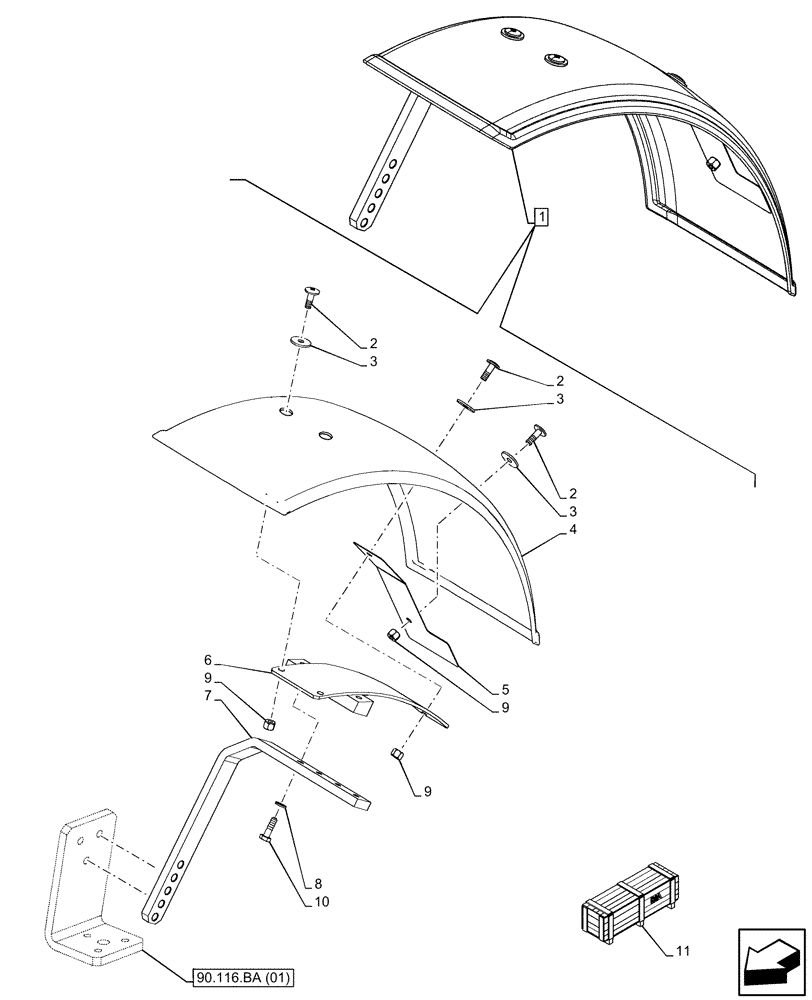

Запчасти Case IH FARMALL 75C (90.116.AC[01]) - VAR - 330484, 744673 - FRONT FENDER (310MM) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47393246

FRONT FENDER,310mm

RH, 310mm, ASSY, Incl 2 - 10

1шт.

1

47393258

FRONT FENDER,310mm

LH, 310mm, ASSY, Incl 2 - 10

1шт.

2

14782614

SCREW,Cross Rec Cheese Hd, M10 x 1.25 x 30mm, Cl 5.8

4шт.

3

12644304

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

4

5137714

COVER ASSY

Black

1шт.

5

5179705

REINFORCEMENT

RH

1шт.

5

5179701

REINFORCEMENT

LH

1шт.

6

5179697

FRAME

RH

1шт.

6

5179698

FRAME

LH

1шт.

7

47393235

BRACKET

1шт.

8

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

9

12574511

LOCK NUT,M10 x 1.25, Cl 8

4шт.

10

15970921

SCREW,Hex, M10 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.

11

710167250

DIA KIT, TRACTOR

Narrow Cover Front Fenders (310mm) for Front Axle W/O Brakes, Incl 1 - 10

1шт.

to see the full DIA KIT composition look for all the Figures where the DIA KIT P/N is shown

1шт.
