Запчасти Case IH FARMALL 75C (90.102.BT) - VAR - 330505, 330507, 330512, 330843, 332501, 390500 - SIDE PANEL, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS

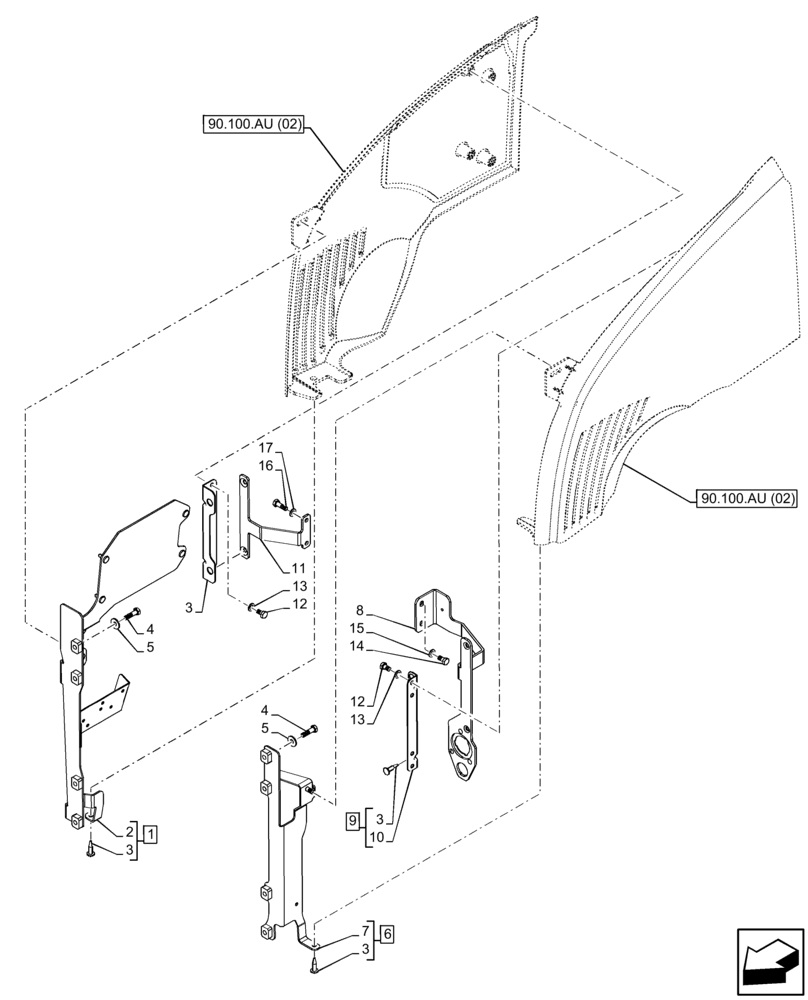

Схема запчастей Case IH FARMALL 75C - (90.102.BT) - VAR - 330505, 330507, 330512, 330843, 332501, 390500 - SIDE PANEL, SUPPORT (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
3
9
5
4
1
3
17
13
14
90.100.au (02)
6
4
15
11
90.100.au (02)
7
3
5
16
10
2
12
13
8
12

Артикул

Название

Примечание

Количество

1

47447907

BRACKET

RH, ASSY, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Bracket, Incl in 1

1шт.

3

47542472

BRACKET

1шт.

4

84365541

BOLT,M8 x 1.25 x 35.45mm, Cl 10.9

M8 x 30 Cl 10.9 PHC

8шт.

5

11198179

BELLEVILLE WASHER,M8 Bolt Size x 22mm OD x 2.2mm Thk

8шт.

6

47449970

BRACKET

LH, ASSY, Incl 3 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Bracket, Incl in 6

1шт.

8

47451597

BRACKET

LH

1шт.

9

84497480

BRACKET

LH, ASSY, Incl 3 (Qty 2), 10

2шт.

10

NSS

NOT SOLD SEPARAT

Bracket, Incl in 9

1шт.

11

47542460

BRACKET

RH

1шт.

12

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

4шт.

13

13507104

WASHER,9.2mm ID x 16mm OD x 1.5mm Thk

9.2 x 16 x 1.5mm

4шт.

14

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

15

11193877

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD

2шт.

16

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

17

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

Выбрано товаров: 17
