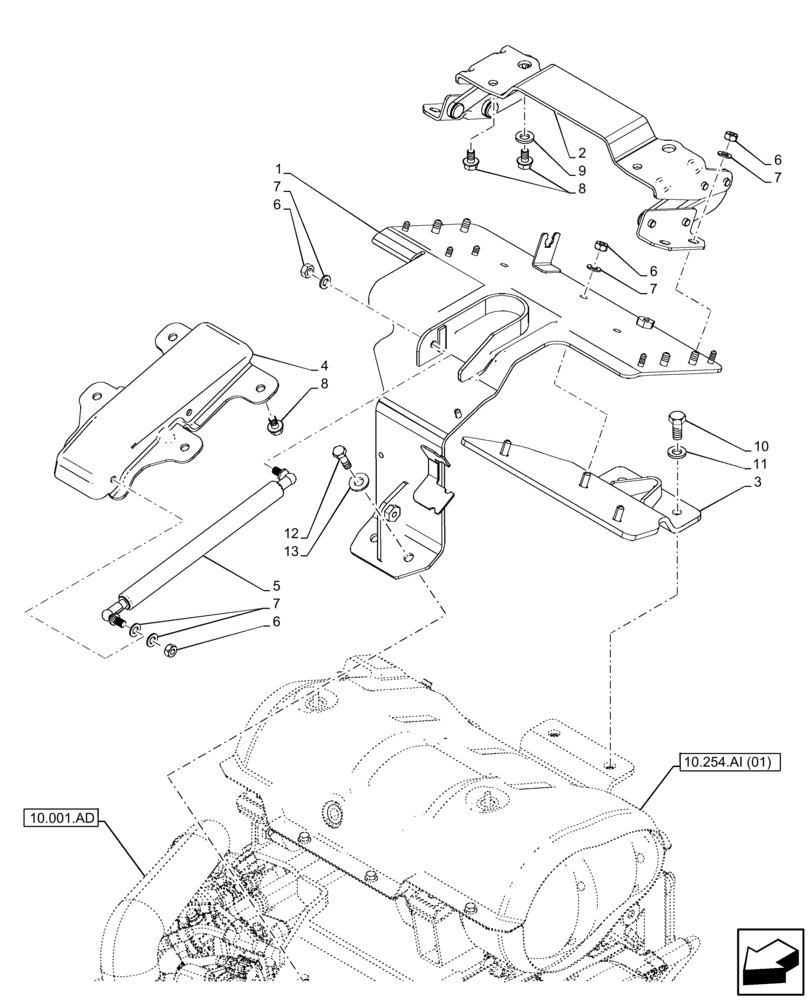

Запчасти Case IH FARMALL 75C (90.102.AW[02]) - VAR - 332501 - HOOD, SUPPORT, HINGE (EXHAUST SYSTEM, HORIZONTAL) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47565008

SUPPORT

1шт.

2

84468641

HINGE

1шт.

3

47379362

SUPPORT

1шт.

4

84417852

BRACKET

1шт.

5

84495666

GAS STRUT

1шт.

6

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

9шт.

7

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

10шт.

8

16281924

FLANGE BOLT,Hvy Hex, M8 x 14mm, Cl 8.8, Full Thd

M8 x 14 Cl 8.8 DAC

8шт.

9

13578378

WASHER,8.15mm ID x 24mm OD x 2mm Thk

8.15 x 24 x 2mm

2шт.

10

16043624

SCREW,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

11193877

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD

2шт.

12

87698833

BOLT,M8 x 33.1mm, Cl 10.9

2шт.

13

11198374

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.6mm Thk

2шт.
