(90.102.AU[02]) - VAR - 330505, 330507, 330512, 330843, 332501, 390500 - HOOD, LOCKING DEVICE

Запчасти Case IH FARMALL 75C (90.102.AU[02]) - VAR - 330505, 330507, 330512, 330843, 332501, 390500 - HOOD, LOCKING DEVICE (90) - PLATFORM, CAB, BODYWORK AND DECALS

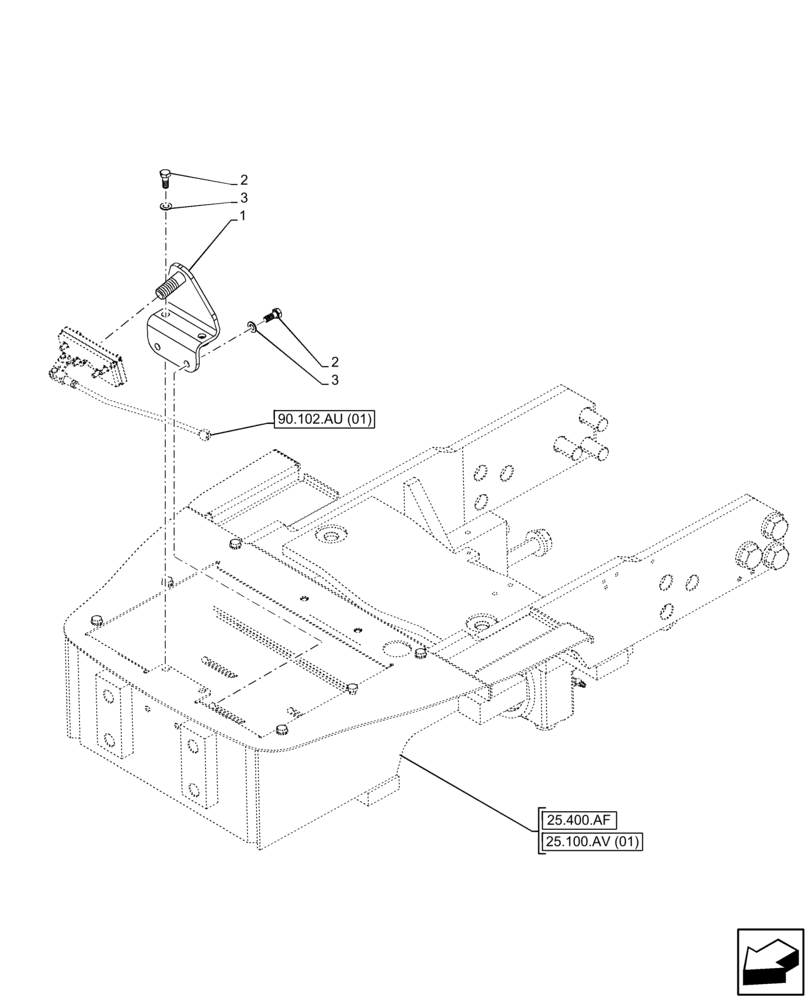

Схема запчастей Case IH FARMALL 75C - (90.102.AU[02]) - VAR - 330505, 330507, 330512, 330843, 332501, 390500 - HOOD, LOCKING DEVICE (90) - PLATFORM, CAB, BODYWORK AND DECALS
25.400.af
1
25.100.av (01)
3
90.102.au (01)
3
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84327743

BRACKET

1шт.

2

16043434

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

3

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.
