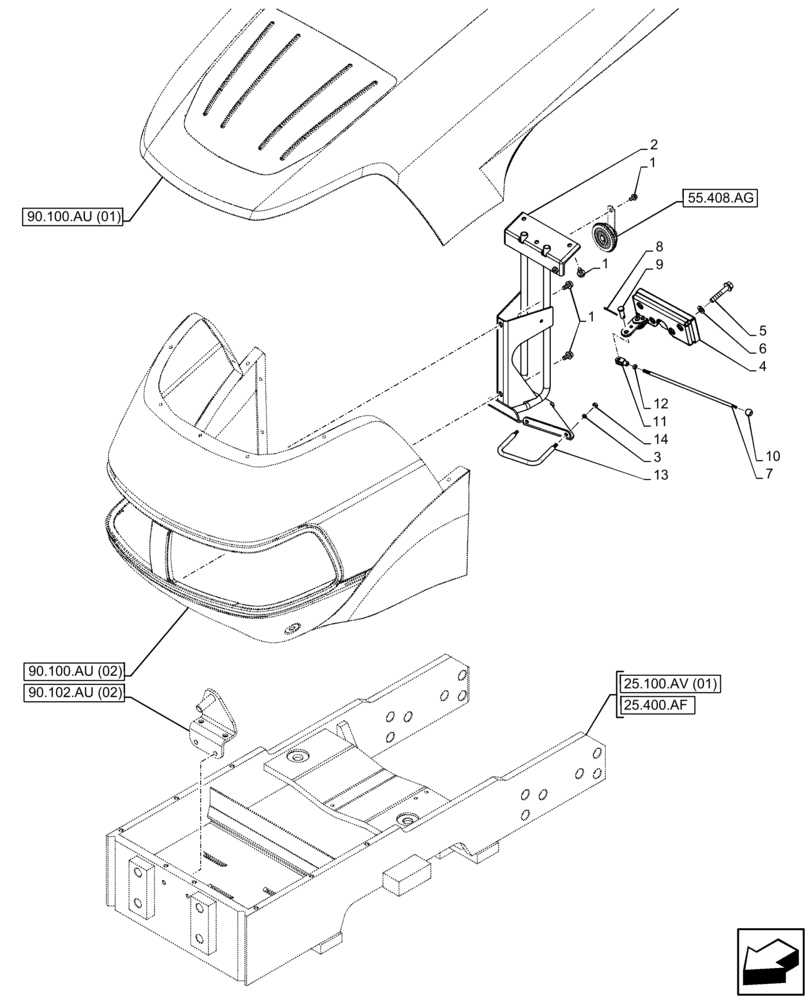

Запчасти Case IH FARMALL 75C (90.102.AU[01]) - VAR - 332501, 390500 - HOOD, LATCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

16285924

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8, Full Thd

5шт.

2

84278506

SUPPORT

1шт.

3

83962575

WASHER,6.6mm ID x 12.5mm OD x 1.6mm Thk

2шт.

4

84349450

LOCK

1шт.

5

87015931

BOLT,Hvy Hex, M6 x 35mm, Cl 8.8

4шт.

6

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

7

84329993

THREADED TIE-ROD

1шт.

8

10795101

COTTER PIN,M1.6 x 18

1шт.

9

10004911

PIN,6mm OD x 17mm L

M6 x 17 HTS ZND

1шт.

10

84287785

BALL,5mm ID x 16mm OD

1шт.

11

10001071

YOKE,M6

1шт.

12

15896211

NUT,M6, Cl 8

1шт.

13

84384258

U-BRACKET

1шт.

14

10720114

NUT,Hex, M6 x 1

2шт.
