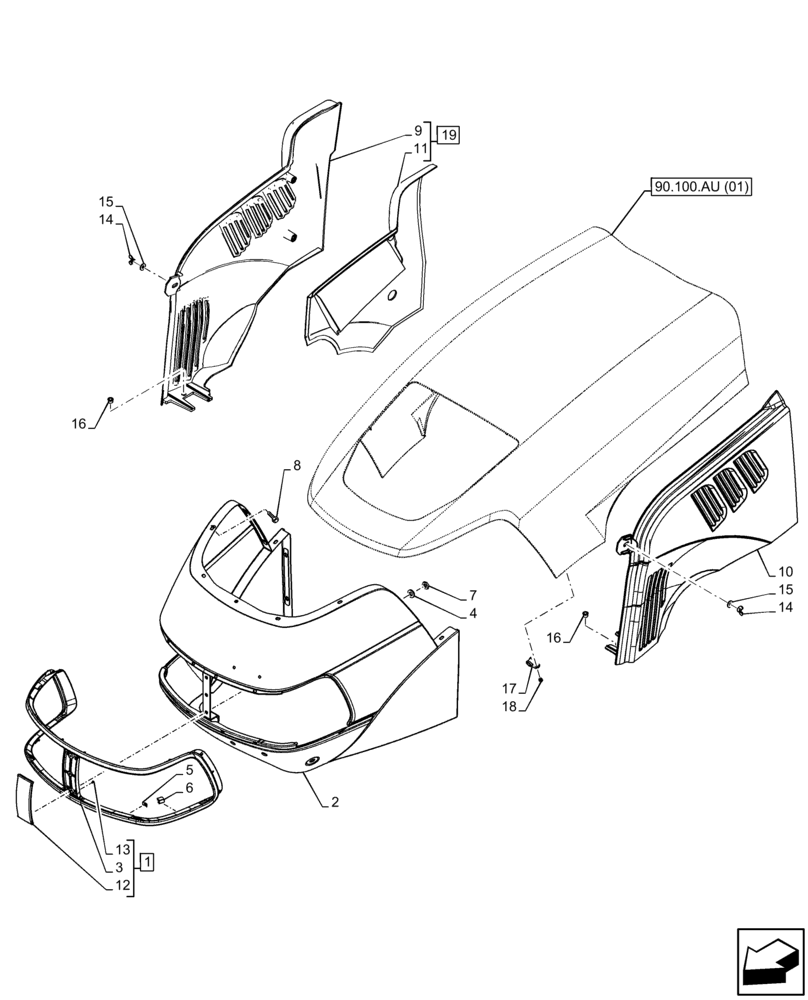

Запчасти Case IH FARMALL 75C (90.100.AU[05]) - VAR - 332501 - HOOD, GRILLE, SIDE PANEL (EXHAUST SYSTEM, HORIZONTAL) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87734283

GRILLE

ASSY, Incl 3, 12, 13

1шт.

2

84310583

RADIATOR GRILLE

Front

1шт.

3

87633243

HOLDER

1шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

3шт.

5

14227674

SPRING NUT,B Style, M4 x 14mm L x 0.4mm Thk

Square, 14mm x 8mm, for 4mm Pin

4шт.

6

87536288

CLIP

U Barbed

4шт.

7

12574211

NUT,M6 x 1, Cl 8

3шт.

8

16285924

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8, Full Thd

18шт.

9

NSS

NOT SOLD SEPARAT

Side Panel, RH, Incl in 19

1шт.

10

84310683

SIDE PANEL

LH

1шт.

11

47569270

SHIELD

1шт.

12

87734282

RADIATOR GRILLE

1шт.

13

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

3 x 8mm DAC

4шт.

14

10102001

WING NUT,Wing Nut, M8 x 1.25

2шт.

15

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

16

87632500

BUSHING

14.2mm OD x 8mm ID x 10.3mm H

2шт.

17

10450290

CLAMP,12mm, Coat, 9mm Bolt Hole, P Type

12mm

1шт.

18

10979414

SCREW,Hex, M6 x 10mm, Cl 5.8

M6 x 10 Cl 5.8 DAC

1шт.

19

47569181

SIDE PANEL

ASSY, RH, Incl 9, 11

1шт.
