(90.100.AU[04]) - VAR - 332501 - HOOD (EXHAUST SYSTEM, HORIZONTAL)

Запчасти Case IH FARMALL 75C (90.100.AU[04]) - VAR - 332501 - HOOD (EXHAUST SYSTEM, HORIZONTAL) (90) - PLATFORM, CAB, BODYWORK AND DECALS

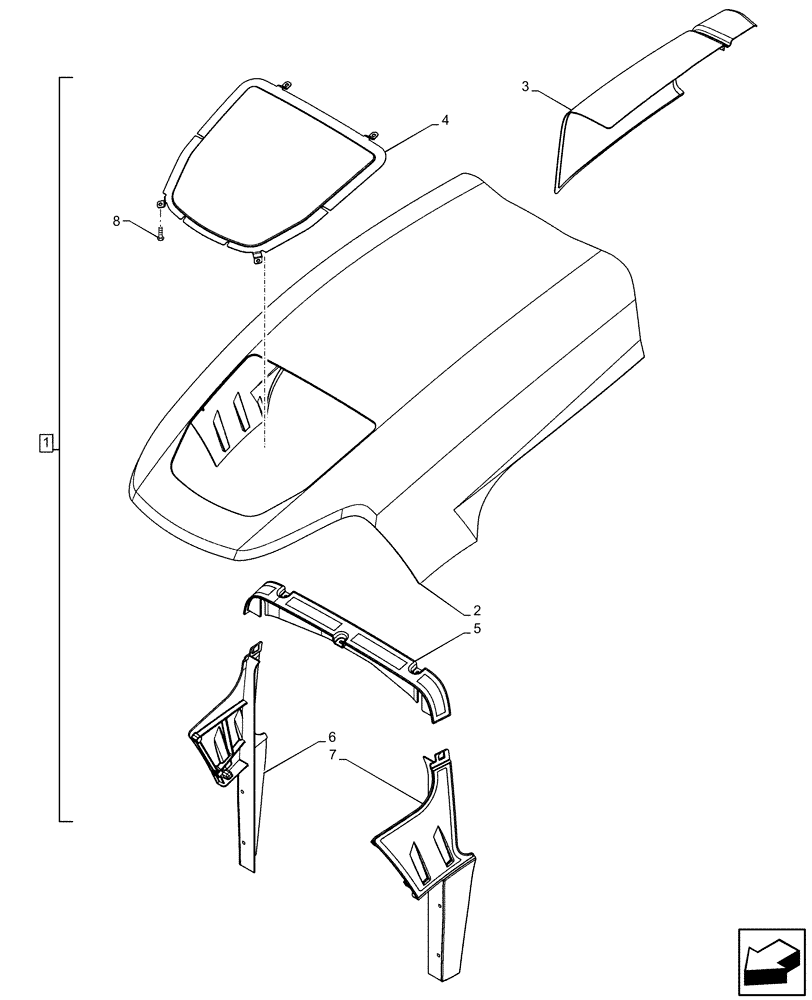

Схема запчастей Case IH FARMALL 75C - (90.100.AU[04]) - VAR - 332501 - HOOD (EXHAUST SYSTEM, HORIZONTAL) (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
2
7
6
1
3
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47569212

ENGINE HOOD

ASSY, Incl 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

Hood, Incl in 1

1шт.

3

47569242

SHIELD

1шт.

4

84310665

RADIATOR GRILLE

Upper

1шт.

5

NSS

NOT SOLD SEPARAT

Cross, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Bulkhead, RH, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Bulkhead, LH, Incl in 1

1шт.

8

16285924

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 8
