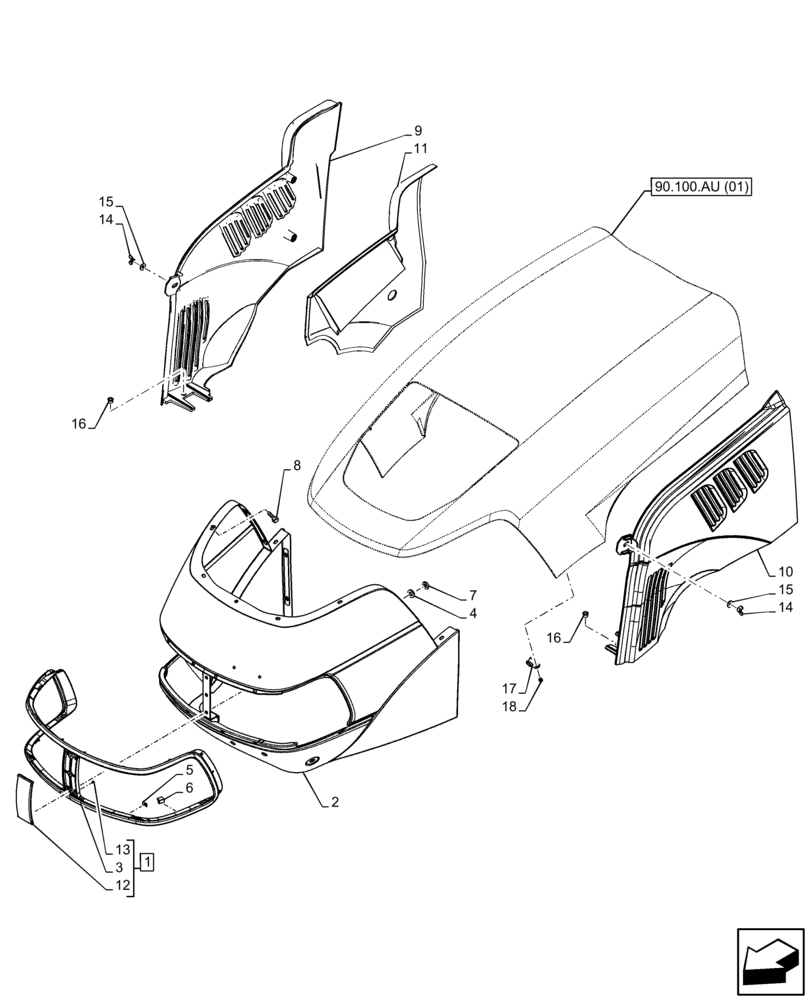

Запчасти Case IH FARMALL 75C (90.100.AU[02]) - VAR - 390500 - HOOD, GRILLE, SIDE PANEL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87734283

GRILLE

ASSY, Incl 3, 12, 13

1шт.

2

84310583

RADIATOR GRILLE

Front

1шт.

3

87633243

HOLDER

1шт.

4

10523401

WASHER,6.15mm ID x 18mm OD x 2mm Thk

3шт.

5

14227674

SPRING NUT,B Style, M4 x 14mm L x 0.4mm Thk

Square, 14mm x 8mm, for 6mm Pin

4шт.

6

87536288

CLIP

U Barbed

4шт.

7

12574211

NUT,M6 x 1, Cl 8

3шт.

8

16285924

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8, Full Thd

18шт.

9

84310690

SIDE PANEL

RH

1шт.

10

84310683

SIDE PANEL

LH

1шт.

11

84293339

SHIELD

1шт.

12

87734282

RADIATOR GRILLE

1шт.

13

82007240

SCREW,Round Washer, 3mm OD x 1.34mm Thd

3 x 8mm DAC

4шт.

14

9706690

NUT,M8 x 1.25, Cl 8

2шт.

15

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

16

87632500

BUSHING

14.2mm OD x 8mm ID x 10.3mm H

2шт.

17

10450290

CLAMP,12mm, Coat, 9mm Bolt Hole, P Type

12mm

1шт.

18

10979414

SCREW,Hex, M6 x 10mm, Cl 5.8

M6 x 10 Cl 5.8 DAC

1шт.
