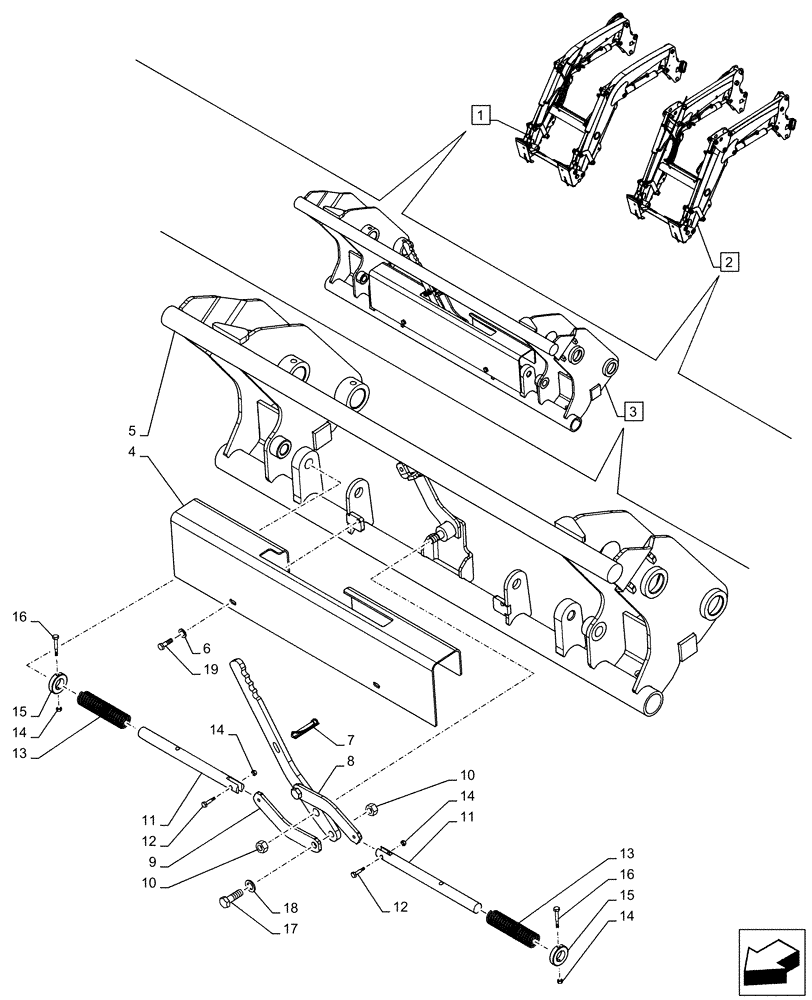

Запчасти Case IH FARMALL 75C (82.300.AX[02]) - VAR - 336734, 336736 - LOADER BUCKET, QUICK COUPLER ("EU" TOOL ATTACHMENT) (82) - FRONT LOADER & BUCKET

1

47556494

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers - EU Tool Attach., Var. 336732

1шт.

1

47592511

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - EU Tool Attach., Var. 336733

1шт.

2

47556496

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers - EU Tool Attach., Var. 336736

1шт.

2

47649265

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers, with Diverter - EU Tool Attach., Var. 336739

1шт.

3

47452093

QUICK-HITCH

ASSY, Incl 4 - 19

1шт.

4

47474726

COVER

1шт.

5

47474717

QUICK-HITCH

1шт.

6

14496504

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

7

84406127

PIN

1шт.

8

47474724

LEVER

1шт.

9

47474725

LEVER

2шт.

10

100038

NUT,M12 x 1.75, Cl 8

3шт.

11

47474722

PIN

2шт.

12

86508566

BOLT,Hex, M5 x 30mm, Cl 8.8

2шт.

13

47474727

SPRING

2шт.

14

43440

LOCK NUT,M5 x .8, Cl 8

4шт.

15

47474723

LOCK PIN

2шт.

16

10978821

BOLT,Hex, M5 x 50mm, Cl 8.8

2шт.

17

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

18

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

19

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

2шт.
