(82.100.AK[01]) - VAR - 743593 - PLATE, W/O FRONT LOADER, W/ CAB

Запчасти Case IH FARMALL 75C (82.100.AK[01]) - VAR - 743593 - PLATE, W/O FRONT LOADER, W/ CAB (82) - FRONT LOADER & BUCKET

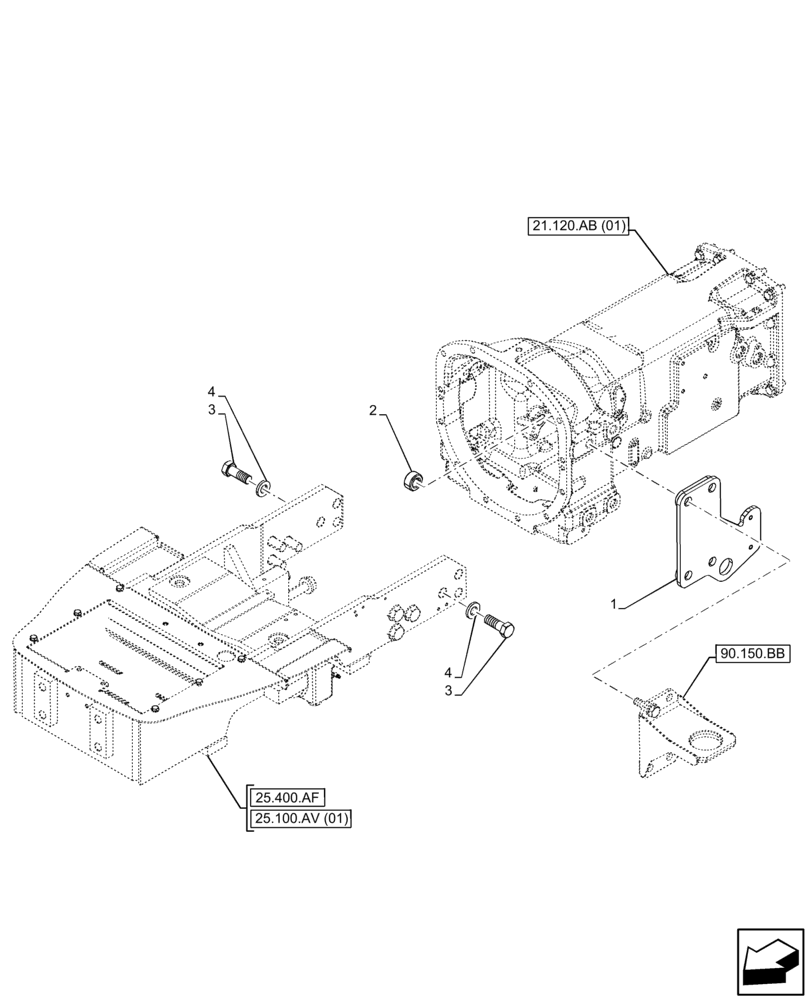

Схема запчастей Case IH FARMALL 75C - (82.100.AK[01]) - VAR - 743593 - PLATE, W/O FRONT LOADER, W/ CAB (82) - FRONT LOADER & BUCKET
1
4
90.150.bb
25.100.av (01)
3
25.400.af
3
21.120.ab (01)
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84308660

BRACKET

LH

1шт.

2

84240834

SPACER

4шт.

3

15988231

BOLT,Hex, M20 x 1.5 x 55mm, Cl 10.9, Full Thd

6шт.

4

11191879

BELLEVILLE WASHER,Belleville, 20mm ID x 38mm OD x 5.2mm Thk

ZNM

6шт.

Выбрано товаров: 4
