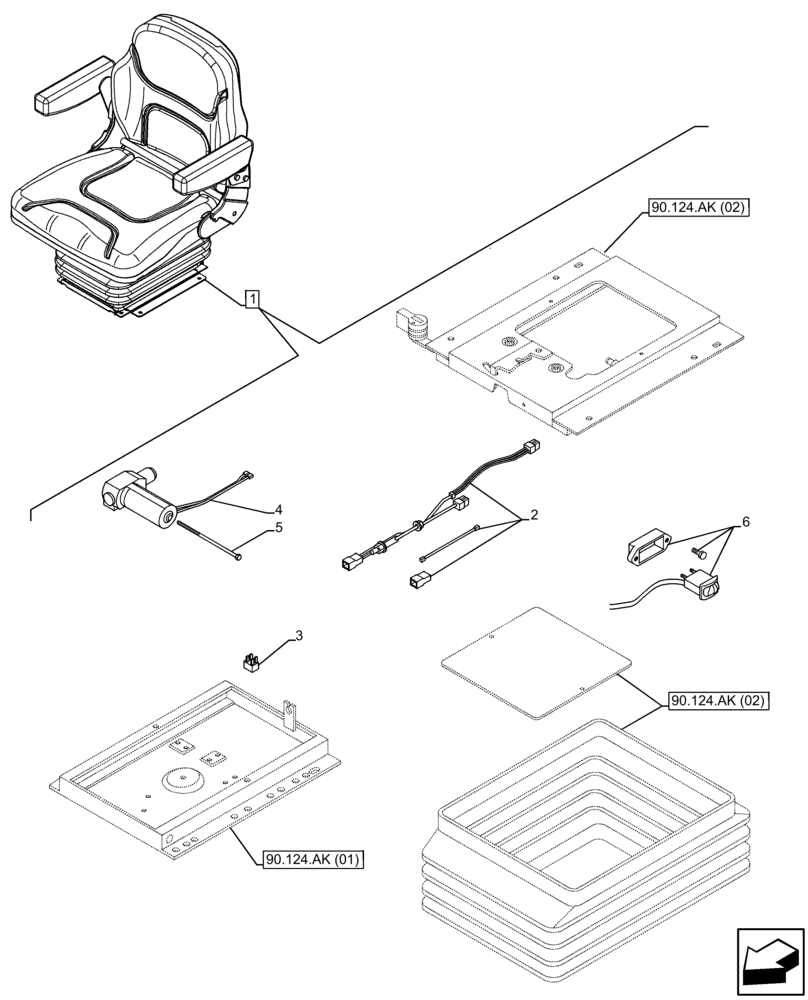

Запчасти Case IH FARMALL 75C (55.512.CQ) - VAR - 331850 - DRIVER SEAT, ADJUSTER, SUSPENSION, SWITCH (55) - ELECTRICAL SYSTEMS

1

84301433

DRIVER SEAT

ASSY, Fabric, Wheat, Incl 2 - 6

1шт.

Air Suspension, W/ Safety Switch, W/ Armrest

1шт.

See Driver Seat Components also in Figure 90.124.AD, 90.124.AE (01), 90.124.AH, 90.124.AK (01) (02), 90.124.AL, 90.124.AM, 90.151.AD (03)

1шт.

2

47438936

KIT

Electrical Cable

1шт.

3

47438989

KIT

Relè 12V

1шт.

4

47438973

KIT

Air Compressor 12V

1шт.

5

NSS

NOT SOLD SEPARAT

Screw, Incl in 1

1шт.

6

47398256

KIT

On/Off Button

1шт.
