Запчасти Case IH FARMALL 75C (55.415.AS[01]) - VAR - 336732, 336734, 336736, 336914 - LOADER ARM, CABLE (55) - ELECTRICAL SYSTEMS

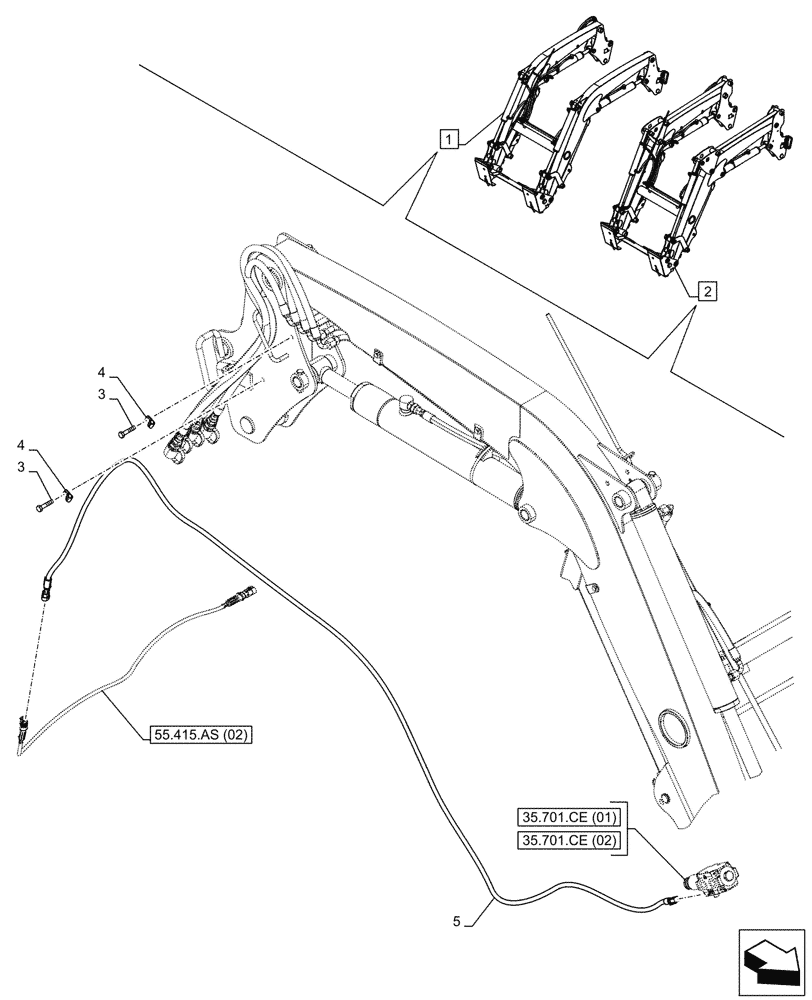

Схема запчастей Case IH FARMALL 75C - (55.415.AS[01]) - VAR - 336732, 336734, 336736, 336914 - LOADER ARM, CABLE (55) - ELECTRICAL SYSTEMS
55.415.as (02)
1
5
4
3
3
4
2
35.701.ce (02)
35.701.ce (01)

Артикул

Название

Примечание

Количество

1

47592515

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336731

1шт.

1

47592511

LOADER

ASSY

1шт.

Front Loader (LIGHT) with 4 couplers, with Diverter - EU Tool Attach., Var. 336733

1шт.

2

47649271

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers, with Diverter - SSL Tool Attach., Var. 336735

1шт.

2

47649265

LOADER

ASSY

1шт.

Front Loader (LIGHT, Self Leveling) with 4 couplers, with Diverter - EU Tool Attach., Var. 336739

1шт.

3

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

4

10450390

RETAINER COLLAR,14mm, Coat, 9mm Bolt Hole, P Type

5шт.

5

47612288

ELECTRIC CABLE

1шт.

Выбрано товаров: 11
