Запчасти Case IH FARMALL 75C (55.408.BL) - VAR - 332850 - DRIVER SEAT (W/ ARMREST & AIR SUSPENSION 15° SWIVEL), SWITCH, CAB (55) - ELECTRICAL SYSTEMS

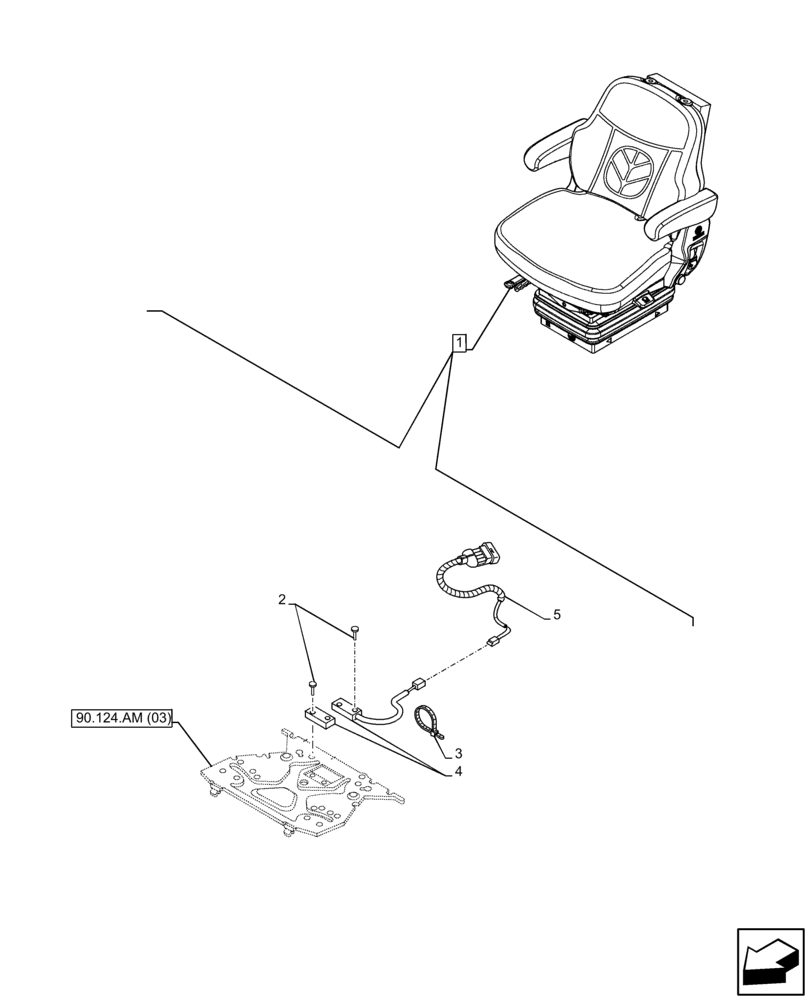

Схема запчастей Case IH FARMALL 75C - (55.408.BL) - VAR - 332850 - DRIVER SEAT (W/ ARMREST & AIR SUSPENSION 15° SWIVEL), SWITCH, CAB (55) - ELECTRICAL SYSTEMS
90.124.am (03)
4
2
1
5
3

Артикул

Название

Примечание

Количество

1

47488681

DRIVER SEAT

ASSY, Incl 2 - 5

1шт.

See Driver Seat Components also in Section, Subsection 90.124, 90.151

1шт.

2

84191201

SET OF PARTS

Seat Service Part

1шт.

3

87567529

CABLE TIE,200mm L

200 x 3.6mm

1шт.

4

84487915

SWITCH

Operator Presence

1шт.

5

9971521

KIT

Connecting

1шт.

Выбрано товаров: 6
