Запчасти Case IH FARMALL 75C (55.404.BS[02]) - VAR - 331713, 391713, 743580, 743581 - WORK LIGHT, W/O CAB (55) - ELECTRICAL SYSTEMS

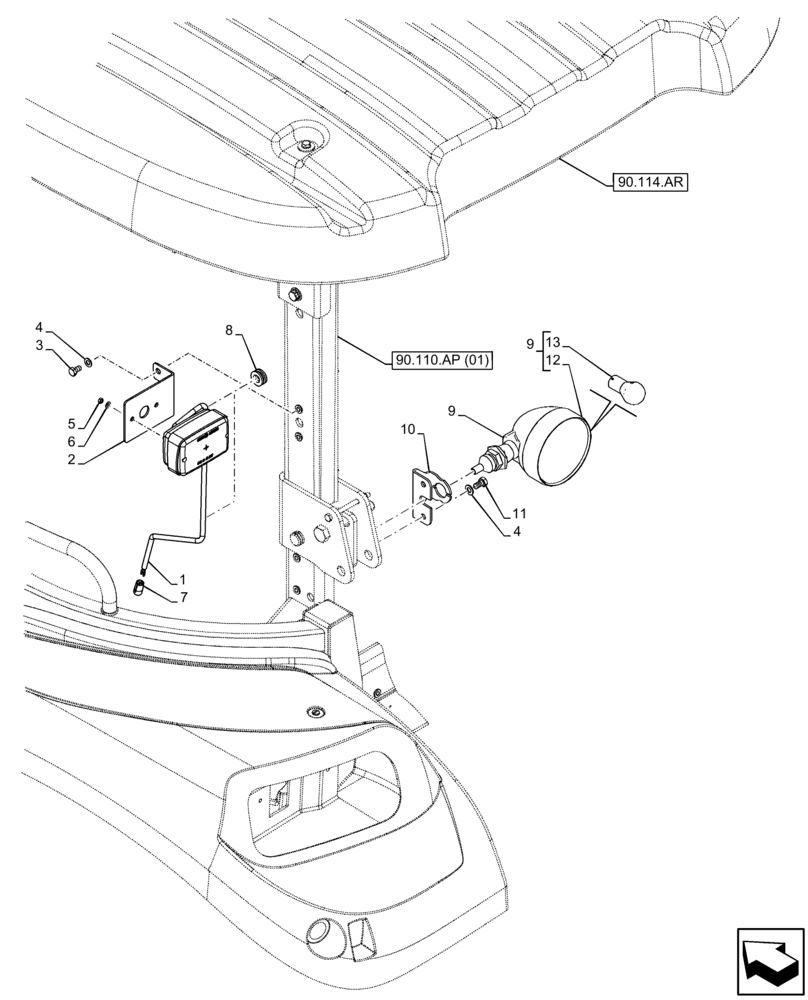

Схема запчастей Case IH FARMALL 75C - (55.404.BS[02]) - VAR - 331713, 391713, 743580, 743581 - WORK LIGHT, W/O CAB (55) - ELECTRICAL SYSTEMS
90.114.ar
2
6
1
12
7
4
9
9
5
13
11
90.110.ap (01)
3
8
10
4

Артикул

Название

Примечание

Количество

1

47133203

FRONT LAMP,Halogen, 12V, 21W, Amber Lens

RH

1шт.

1

47133204

FRONT LAMP,12V, 21W, Amber

LH

1шт.

2

84311561

BRACKET

1шт.

3

16043214

BOLT,Hex, M8 x 1.25 x 16mm, Cl 5.8, Full Thd

2шт.

4

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

4шт.

5

15896414

NUT,M5, Cl 8

2шт.

6

11181574

BELLEVILLE WASHER,M5 Bolt Size x 11mm OD x 0.9mm Thk

2шт.

7

47135267

ELEC CONNECTOR,Female, 4 Cavities

1шт.

8

10398280

GROMMET,14mm ID x 27mm OD x 11mm Thk

2шт.

9

5129461

WORK LAMP,12V, 55W, Clear

ASSY, Auxiliary View, Incl 12, 13

1шт.

10

5183210

SUPPORT

1шт.

11

16043224

BOLT,Hex, M8 x 16mm, Cl 8.8

2шт.

12

NSS

NOT SOLD SEPARAT

Work Lamp, Incl in 9

1шт.

13

10861290

BULB,12V, 35W

12V/55W

1шт.

Выбрано товаров: 14
