(55.021.AB[02]) - VAR - 330328, 330581, 390328, 743559 - TRANSMISSION, PRESSURE SWITCH, W/O CAB

Запчасти Case IH FARMALL 75C (55.021.AB[02]) - VAR - 330328, 330581, 390328, 743559 - TRANSMISSION, PRESSURE SWITCH, W/O CAB (55) - ELECTRICAL SYSTEMS

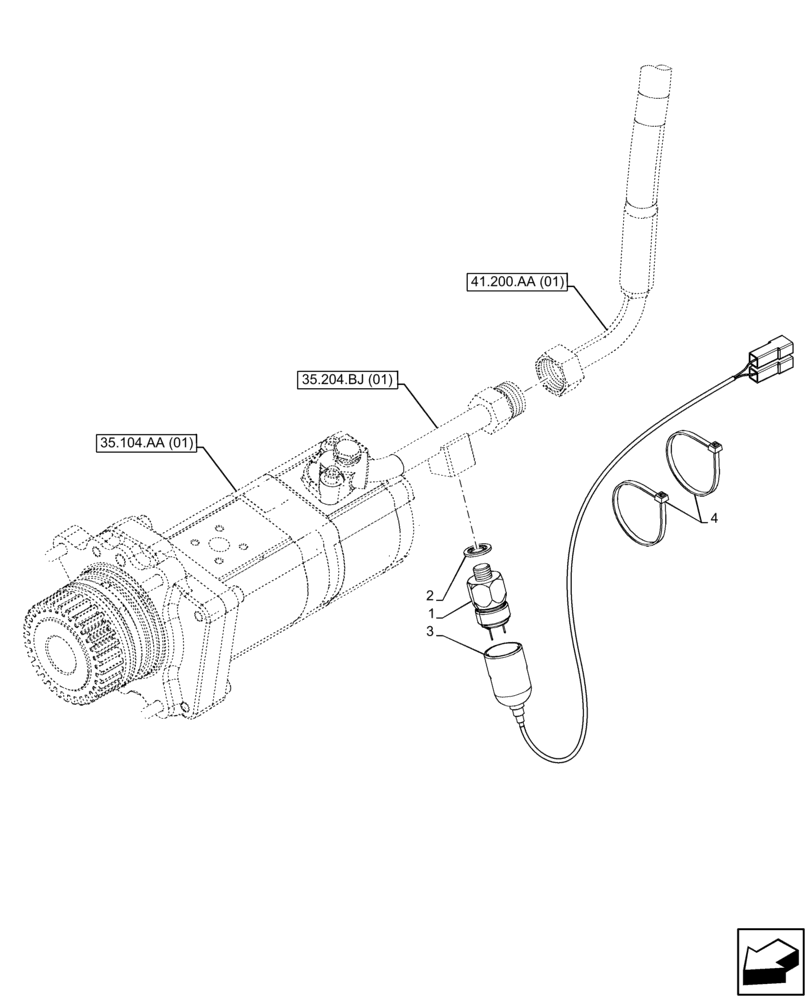

Схема запчастей Case IH FARMALL 75C - (55.021.AB[02]) - VAR - 330328, 330581, 390328, 743559 - TRANSMISSION, PRESSURE SWITCH, W/O CAB (55) - ELECTRICAL SYSTEMS
3
35.204.bj (01)
35.104.aa (01)
4
41.200.aa (01)
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87494632

PRESSURE SWITCH,M12 x 1.5

Power Steering, Oil Minimum Pressure

1шт.

2

5183780

SEALING WASHER,9.73mm ID x 18mm OD x 1.5mm Thk

1шт.

3

47422482

WIRE HARNESS

Power Off 2WD, Rops Extension

1шт.

4

14560187

COLLAR,199mm L

4шт.

Выбрано товаров: 4
