(55.015.AB[01]) - VAR - 390742, 397742, 743585 - HARNESS, ENGINE

Запчасти Case IH FARMALL 75C (55.015.AB[01]) - VAR - 390742, 397742, 743585 - HARNESS, ENGINE (55) - ELECTRICAL SYSTEMS

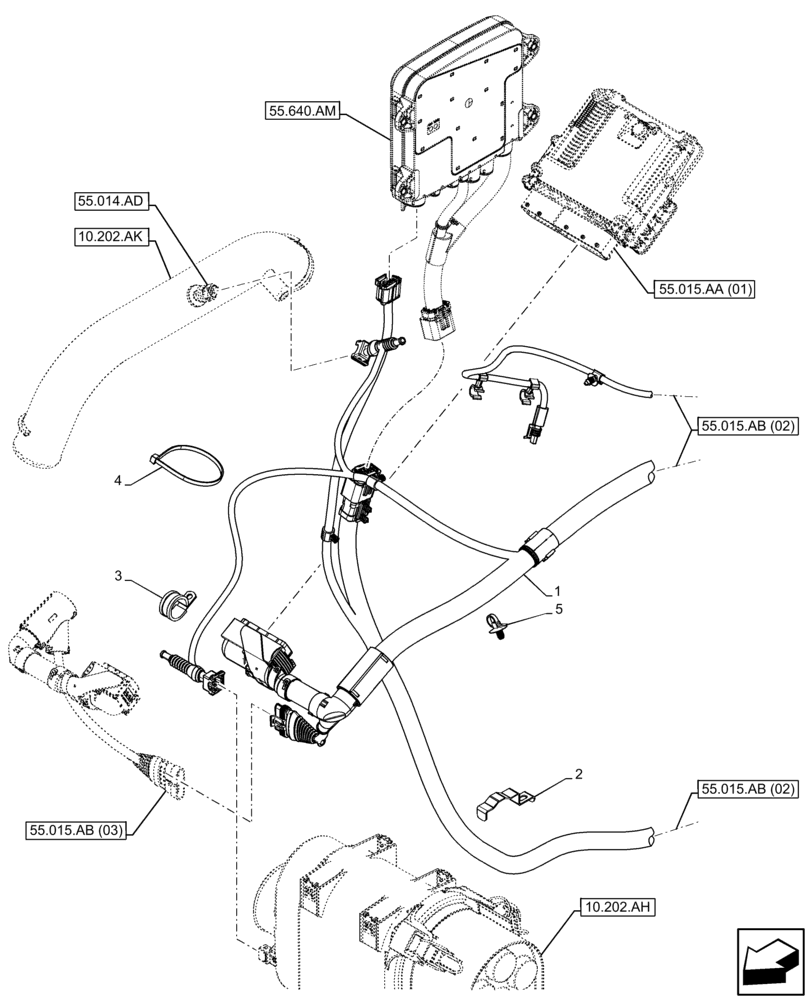

Схема запчастей Case IH FARMALL 75C - (55.015.AB[01]) - VAR - 390742, 397742, 743585 - HARNESS, ENGINE (55) - ELECTRICAL SYSTEMS
5
55.015.ab (03)
4
10.202.ah
55.015.ab (02)
3
10.202.ak
55.640.am
55.015.aa (01)
2
55.014.ad
55.015.ab (02)
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47523049

WIRE HARNESS

Engine 1

1шт.

See also Figure 55.015.AB (02)

1шт.

2

47421874

SUPPORT

1шт.

3

10417901

RETAINER,26mm, Coat, 7mm Bolt Hole, P Type

Closed, 26mm

2шт.

4

14560287

CABLE TIE,207.00mm L

1шт.

5

82033028

CABLE TIE,170mm L

170mm

3шт.

Выбрано товаров: 6
