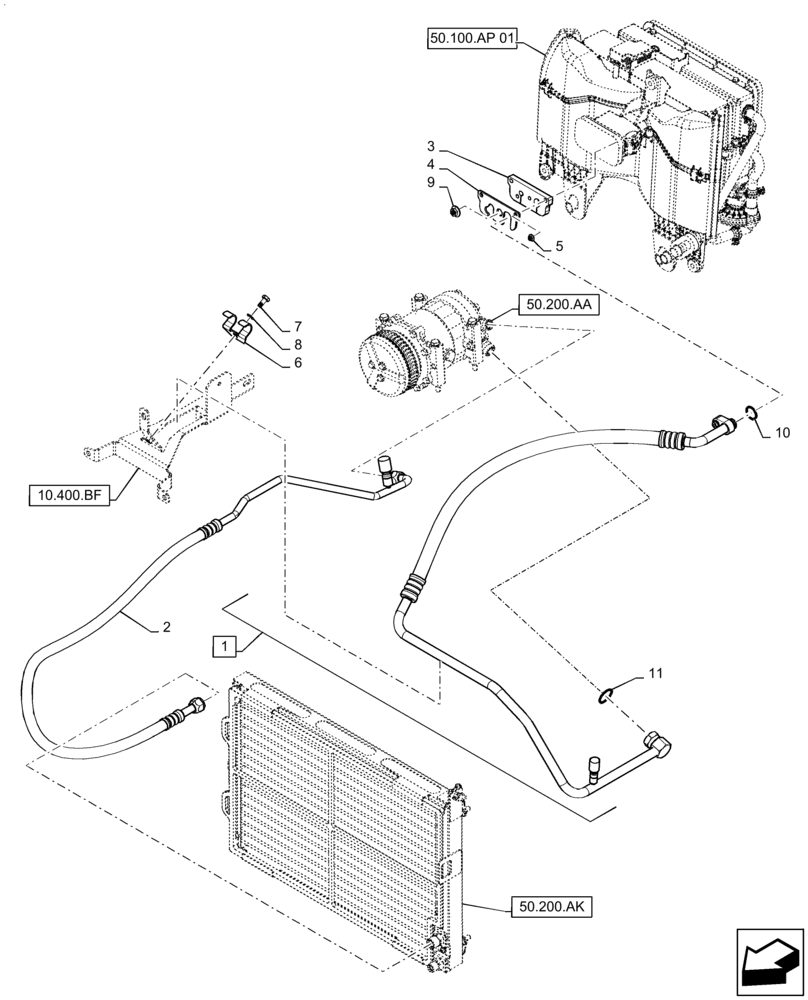

Запчасти Case IH FARMALL 75C (50.200.AB) - VAR - 334183, 334211, 391606, 743496, 743573, 744588 - AIR CONDITIONER, COMPRESSOR, LINE (50) - CAB CLIMATE CONTROL

1

47455554

A/C HOSE

From Compressor to Heater, Incl 10-11

1шт.

2

47455510

A/C HOSE

From Compressor to Condenser

1шт.

Incl PN 414080A1 High Flow Side Port Cap (not illutrated)

1шт.

3

47443943

GASKET

1шт.

4

47443947

PLATE

1шт.

5

13046011

NUT,Flange Hex, M5

2шт.

6

47536927

SUPPORT

1шт.

7

10902124

SCREW,Hex, M6 x 14mm, Cl 8.8

1шт.

8

12601274

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, DAC

1шт.

9

14059214

FLANGE NUT,Hex, M6 x 6 Thd, Cl 8

2шт.

10

9827059

O-RING,1.78mm Thk x 14mm ID, 70 Duro

1шт.

11

14450783

O-RING,13.4mm ID x 2.4mm Width

1шт.
